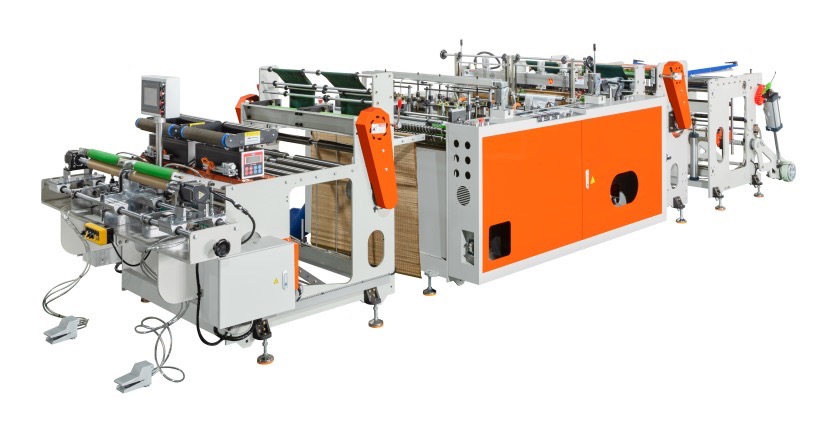

Semi type Double Line High Speed Perforated T-shirt Bags&Vegetable bags on Roll Machine with Core

DESCRIPTION： Semi type Double Line Perforated T-shirt Bags&Vegetable bags on Roll Machine with Core HDSM500X2 is for T-shirt bags and vegetable bag on roll with core by changing finished rolls manually at maximum speed 130 pcs/min. Machine Features: 1.One set domestic brand servo motor and servo drive control bag’s length precisely and stable speed, reducing electric consumption. 2.Bag’s length and production speed can be set easily on the touch screen. 3.One set German made SICK photocell for 1 line accurate printed bags. 4.T-shirt bag heated punching die cutter is by servo motor controlled, according to customer’s design and size. 5.Machine stops automatically when: 1）Bags jammed. 2）Film is finished or broken. Technical parameters:

Model	HDSM450X2
Width of bag made	200-400mm
Length of bag made	700mm
Thickness of packaging material	0.005-0.05mm
Packaging speed	130pcs/min
air pressure	6.5HP
aggregate capacity	6kw
voltage	220V three-phase
machine weight	2000kg
outline dimension	5500×1700×1700mm
