Side Sealing Loop Handle&Draw Tape&Die Cut & Patch Handle Bag Making Machine

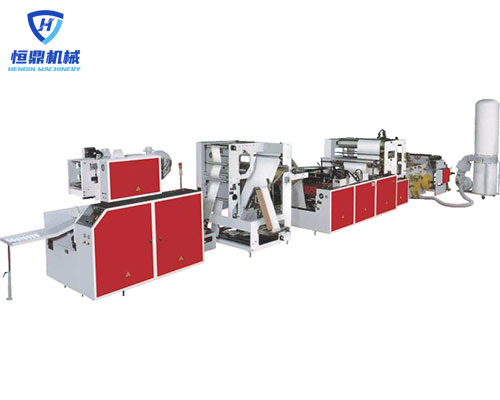

DESCRIPTION Fully Automatic Side Sealing Loop Handle, Draw Tape, Die Cut & Patch Handle Bag Making Machine Multifunctional bag machine is a fully automatic servo driven side sealing bag making machine for the production of 4 different models of PE side sealed bags with handles, such as loop handle bag, draw tape bag, D punched handle bag and patch handle bag. Loop handle and D punched handle bags can be with or without top folds and all the different models of bags can be with or without bottom gusset. Machine is equipped with automatic lift up film roll unwinder making change of rolls an easy job. Furthermore, automatic tension control and E.P.C are standard for smooth and correct path of the web. Machine Features: 1.Machine body is made of thick steel frame for stability at high speed operation. 2.Domestic brand servo motor and servo drive control bag’s length precisely and stable speed, reducing electric consumption. 3.Bag’s length and production speed can be set easily on the touch screen. 4.One set German made photocell SICK for 1 line accurate printed bags. 5.Automatic lift up film roll unwinder with air shaft. 6.Automatic tension control of unwinding film roll by powder brake system. 7.E.P.C (Edge Position Control) guiding device. 8.Automatic tension control of plastic film on main machine by dancing rollers. 9.Independent reinforce sealing devices for the top folds and bottom gusset. 10.Out feeding of finished side sealed bags by up and down air blowing system. 11.Automatic stacker with conveyor for finished side sealed bags. OPTIONAL EQUIPMENT: 1)In-line triangle folding device.

Main Technical Parameter

Model	HD-CS1250
Width of bag	450-1000mm
Length of bag	550-1100mm
Film thickness	15-50mic
Bag-making Speed	100pcs/min
Film rewind Diameter	Φ150mm
Film unwind Diameter	Φ1000mm
Speed for changing the roll	Max.10
Draw Tape Film width	100mm
Draw Tape Film Diameter	600mm
Core size	Φ25-65mm
Total power	15kw
Air Consumption	7.5HP
Machine weight	4500kg
Overall Dimension(LxWxH)	14500x2250x2100mm
