Functions

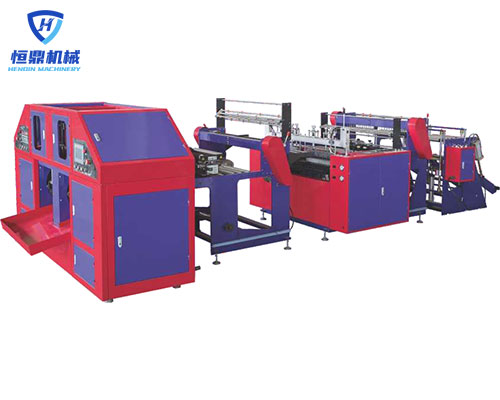

HD-YX500X2 designed for bag-on-roll with paper&pvc core production.Its automatic film-break and core change functions help bag suppliers to improve bag making capacity and to reduce energy and man power at the most extent.Its double servo motors control system make producing more stable.It is the best Choice for making bottom sealing printed bags and plain bags.
Main Technical Parameter
| Model |
HD-YX500X2 |
| Width of bag |
200-450mm*2 |
| Length of bag |
150-1000mm |
| Film thickness |
7-35mic |
| Bag-making Speed |
80-100pcs/min*2 lines |
| Film rewind Diameter |
Φ180mm |
| Film unwind Diameter |
Φ900mm |
| Core size |
Φ25-65mm |
| Total power |
14kw |
| Air Consumption |
6HP |
| Machine weight |
3500kg |
| Overall Dimension(LxWxH) |
6000x2400x1900mm |
