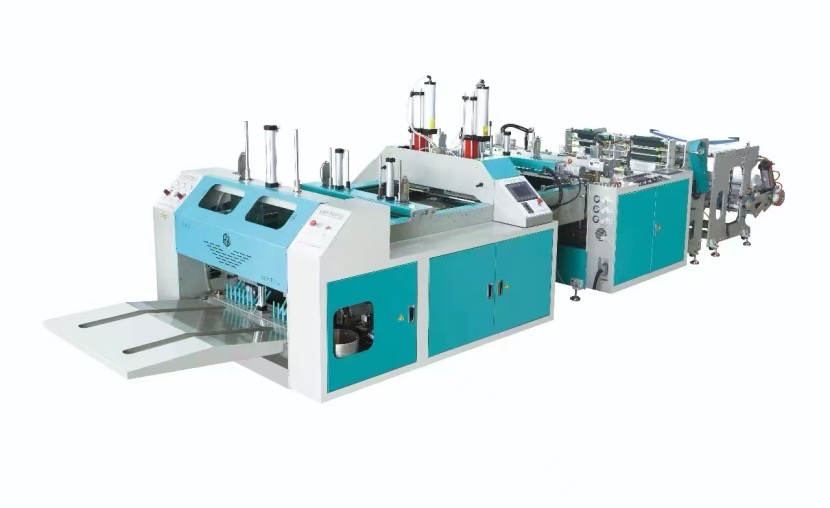

2 Lines High Speed Hot Cutting T-shirt Bag Making Machine with Auto Strapping Unit DESCRIPTION Fully Automatic Super High Speed 2 Lines T-shirt Bag Making Machine with Auto Strapping Unit HD550X2 is a state-of-the-art fully automatic super high speed 2 lines servo driven machine for production of maximum 500 printed or non-printed T-shirt bags/min with integrated in-line automatic punching and strapping units to reduce labor costs and also solve the problem of manpower shortage. Machine Features: 1.Machine body is made of thick steel frame for stability at high speed operation. 2.In-line automatic strapping unit by servo motors for packing of T-shirt bags precisely and to reduce labor costs. 3.Two sets German made photocells SICK for outer printed packing bags. 4.Two sets Japan made servo motors and servo drives control bags’ lengths precisely and stable speed, reducing electric consumption. 5.Bags’ lengths and production speed can be set easily on the touch screen. 6.Two sets German made photocells SICK for 2 lines accurate printed bags. 7.Automatic lift up film rolls unwinders with air shafts, reducing the number of employees. 8.Automatic tension control of unwinding film roll 9.Sealing device is turn over system for easy maintenance or change of hot cutting knives. 10.In-line automatic punching unit with bags folding device, uses hydra-pneumatic cylinders for fast and precise punching of bags’ handles. 11.Punched-out scraps are collected by conveyor for recycling. 12.Machine stops automatically when: 1)Bags jammed. 2)Film is finished or broken. Technical parameter：

Model	HS450mmX2	HS550mmX2
Bag width	100-400mmX2	100-500mm X2
Bag length	280-650mmX2	280-650mm X2
Bag thickness	0.005-0.05mm	0.005-0.05mm
Bag capacity	250pcs-300pcs/minX2	250pcs-300pcs/min X2
Air pressure	6.5HP	6.5HP
Voltage	220V 50Hz	220V 50Hz
Machine weight	3T	3.2T
Machine dimension	8000x1800x1800mm	8000x1900x1800mm
