Product Features

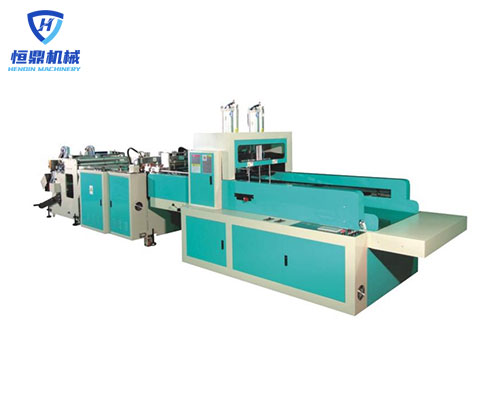

This machine is applier to manufacture the printed or plain vest bags by HDPE/LDPE roll films.It adopts PLC control,double servo(step)motor ti fix length and the liquid crystal touch screen actual display the feeding,sealing,cutting,punching holes and transporting only in one process.It is of high degree of automation and good economic result.
Main Technical Parameter
| Model |
HD-HS400X2 |
HD-HS500X2 |
| Max.sealing&cutting width |
350mm*2 |
450mm*2 |
| Sealing&cutting length |
800mm |
800mm |
| Sealing&cutting thickness |
0.008-0.05mm |
0.008-0.05mm |
| Error in Length |
±1mm |
±1mm |
| Bag-making Speed |
220pcs/min*2 |
220pcs/min*2 |
| Power of main motor |
1.5KW |
2.2KW |
| Heating power |
5kw |
6kw |
| Total power |
13kw |
16kw |
| Voltage |
380v50hz |
380v50hz |
| Machine weight |
1500kg |
1700kg |
| Overall Dimension(LxWxH) |
5500x1500x1700mm |
5500x1700x1700mm |
