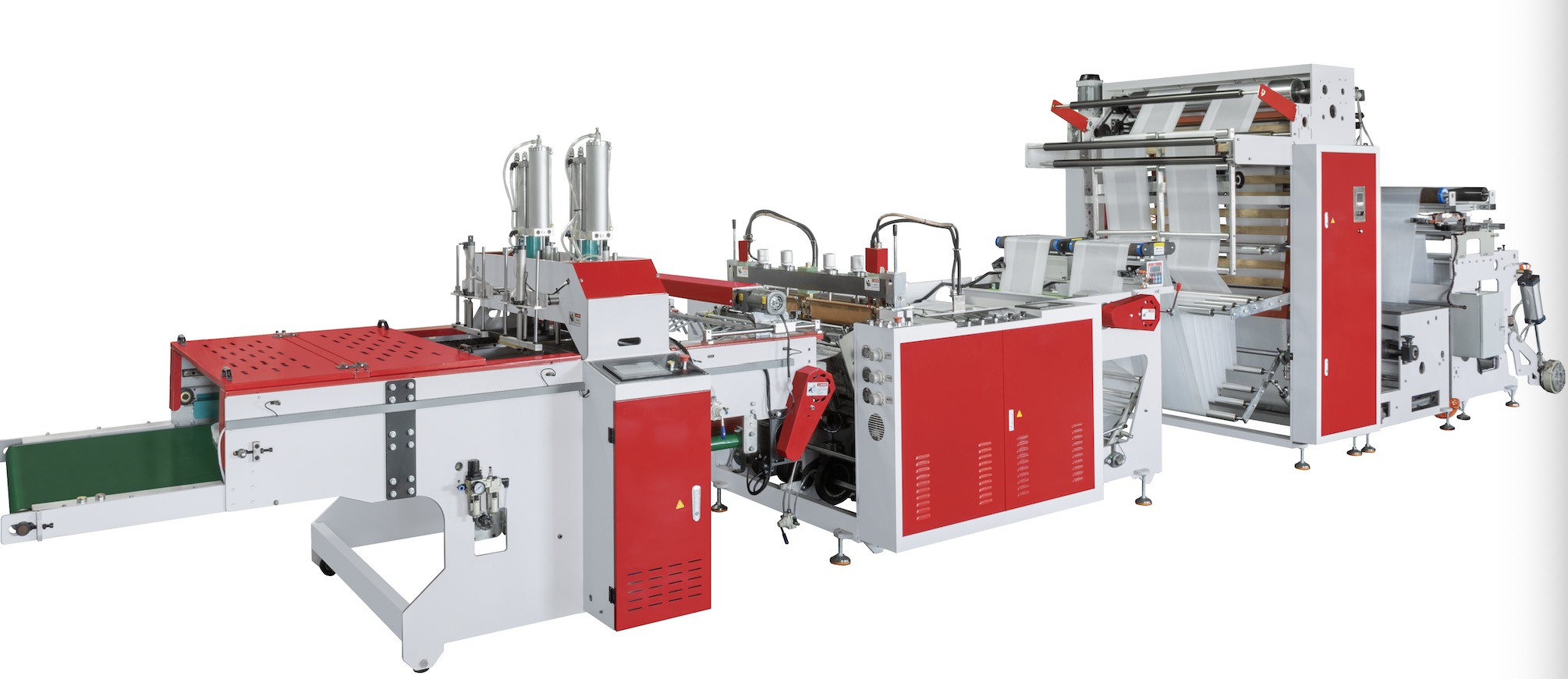

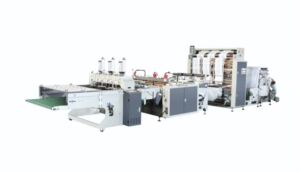

Hot Slitting 2 Lines Hot Cutting T-shirt Bag Making Machine

DESCRIPTION Fully Automatic Super High Speed 2 Lines T-shirt Bag Making Machine with Hot Slitting and Side Gusseting Devices HD-450X2-ST2 and HD-550X2-ST2 is a fully automatic super high speed servo driven machine for production of maximum 500 printed or non-printed bags T-shirt bags/min by 2 lines from jumbo film roll with hot slitting and side gusseting devices, unwinding unit including automatic lift up, tension control, air shaft, E.P.C and integrated in-line automatic punching unit. Machine Features: 1.Machine body is made of thick steel frame for stability at high speed operation. 2.One set Domestic brandservo motor and servo drive control bag’s length precisely and stable speed, reducing electric consumption. 3.Bag’s length and production speed can be set easily on the touch screen. 4.One set German made SICK photocell for accurate printed bags. 5.P.C (Edge Position Control) to keep the film at correct position. 6.Hot slitting and side gusseting devices, special for T-shirt bags. 7.Automatic lift up film roll unwinder with air shaft, reducing the number of employees. 8.Automatic tension control with Japan made YASKAWA inverter for unwinding of jumbo film roll. 9.Sealing device is turn over system for easy maintenance or change of hot cutting knives. 10.In-line automatic punching unit with bags folding device, uses hydra-pneumatic cylinders for fast and precise punching of bags’ handles. 11.Punched-out scraps are collected by conveyor for recycling. 12.Machine stops automatically when: 13.Bags jammed. 14.Film is finished or broken. 1）Temperature below the setting. 2）Print is not at correct position. Technical parameters:

Model	HD-450X2-ST2	HD-550X2-ST2
Maximum width of film	1100mm	1300mm
Maximum diameter of film	900mm	900mm
Width of bag made	200-400mm×2	200-500mm×2
Length of bag made	320-650mm×2	320-650mm×2
Thickness of packaging material	0.005-0.05mm	0.005-0.05mm
Packaging speed	120~250pcs/min×2	120~250pcs/min×2
air pressure	6.5HP	6.5HP
aggregate capacity	16kw	16kw
voltage	220V three-phase	220V three-phase
machine weight	3500kg	3800kg
outline dimension	11500×1700×2200mm	11500×1900×2200mm
