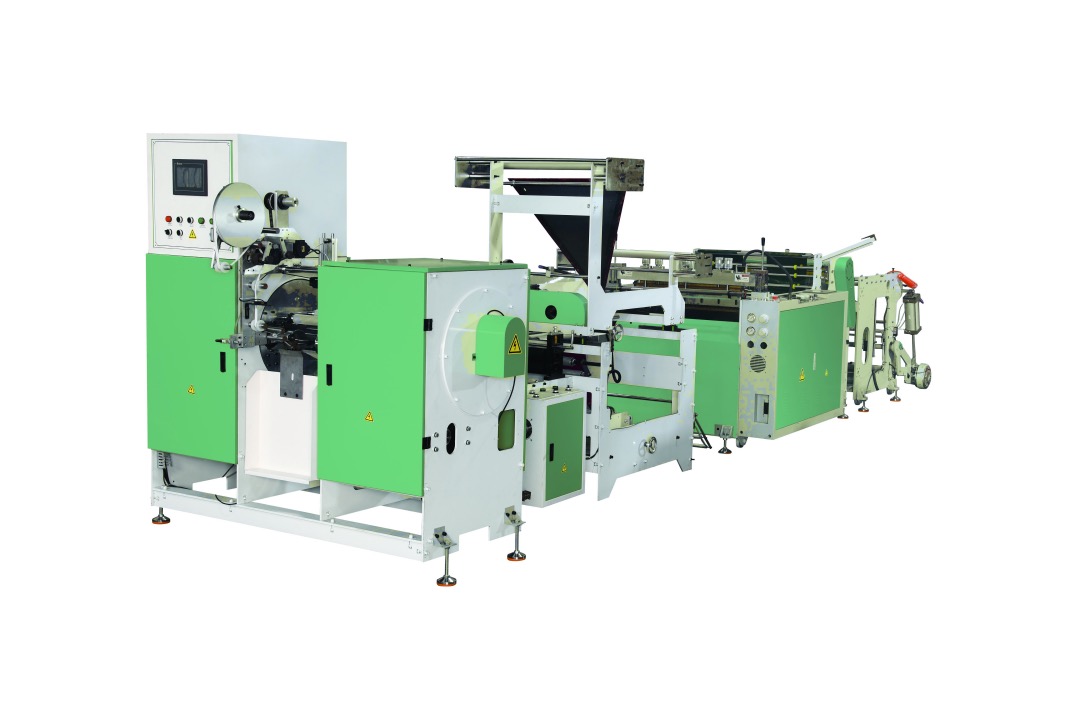

Rolling Bottom Seal C Fold Garbage Bag Making Machine

Product name: 1）Single Line Linkage Double Folding After Sealing Industrial Bag Making Machine 2)C Folding Rolling Garbage Bag Making Machine 3)C Fold Garbage Bag on roll Machine 4)Coreless One line bottom sealing bag on roll making machine coreless 5)Twice Fold bottom sealing bag on roll making machine Performance features: SH-800 bag making machine can C-fold large film rolls into small rolls. It can be single C-folded or double C-folded. Full computer control system to control every production process,When the film is exhausted, the machine will automatically stop production.From film roll to finished product, consistent production process,When the film is blocked or the bag is blocked, the machine will automatically stop production Automatic film replenishment and tension adjustment.The servo motor is standard equipment, making it easier to adjust the length of the bag and the speed of bag making during production. Technical parameter

Model	SH-800
Bag cutting width	500-700mm
Winding width	100-350mm
Bag cutting length	500-1500mm
Film thickness	0.008-0.05mm
Line speed	80-100m/min
Roll diameter	900mm
final product roll diameter	150mm
Total power	14kw
Machine weight	3200kg
Machine dimension	7500x2400x1800
Air compressor	5.5hp
