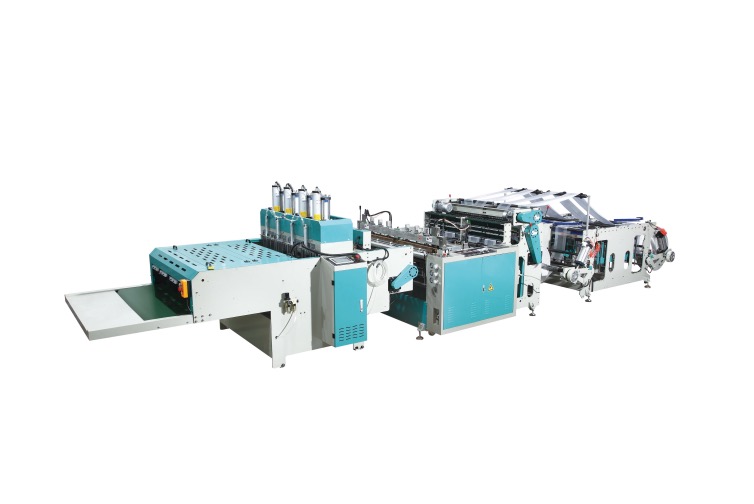

2 or 4 Lines Hot Cutting T-shirt Bag Making Machine

DESCRIPTION:
Super High Speed 2 or 4 Lines T-shirt Bag Making Machine with 2 Photocells
HD-550X2-4L is a fully automatic super high speed servo driven machine for production of maximum 500 printed or non-printed T-shirt bags/min by 2 lines or maximum 1,000 T-shirt bags/min by 4 lines, with an integrated in-line automatic punching unit and automatic lift up film rolls unwinders with air shafts.
Machine Features:
1.Machine body is made of thick steel frame for stability at high speed operation.
2.This machine can produce 2 lines printed T-shirt bags or 4 lines non-printed T-shirt bags.
3.Two setsDomestic brand servo motors and servo drives control bags’ lengths precisely and stable speed, reducing electric consumption.
4.Bags’ lengths and production speed can be set easily on the touch screen.
5.Two sets German made SICK photocells for 2 lines accurate printed bags.
6.Automatic lift up film rolls unwinders with air shafts, reducing the number of employees.
7.Automatic tension control of unwinding film roll
8.Sealing device is turn over system for easy maintenance or change of hot cutting knives.
9.In-line automatic punching unit with bags folding device, uses hydra-pneumatic cylinders for fast and precise punching of bags’ handles.
10.Punched-out scraps are collected by conveyor for recycling.
11.Machine stops automatically when:
1)Bags jammed.
2)Film is finished or broken.
Technical parameters:
| Model | HD-550X2-4L |
| Width of bag made | 200-500mm×2
200-280mmX4 |
| Length of bag made | 280-700mm×2 |
| Thickness of packaging material | 0.005-0.05mm |
| Packaging speed | 120~300pcs/min×2 |
| air pressure | 6.5HP |
| aggregate capacity | 18kw |
| voltage | 220V three-phase |
| machine weight | 4500kg |
| outline dimension | 7500×2100×1800mm |
