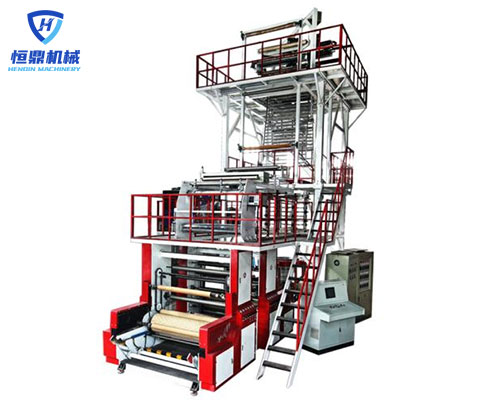

SJ-ABC-1300-2200 High Quality Three-Layer Co-extruding Blown Machine）

Product Description

This machine is used for the production of LDPE, LLDPE, HDPE and other plastic substrates, films, and protective films, which can better meet the needs of high-precision, high-speed color printing, compounding, and coating products.

Performance and Features

1. The traction horizontal reciprocating swing rotation replaces the rotation of the die head, which greatly simplifies the structure of the die head, avoids the problems of material leakage, difficult sealing, and difficult maintenance caused by the rotation of the die head, and overcomes the quality of the film roll size and elastic edge problem, to ensure good flatness of the film.
2. The internal cooling system of IBC film bubble improves the transparency and internal quality of film products, and the output of the unit is significantly increased.
3. The high-precision diameter control system adjusts the air volume by controlling the fan speed, and the deviation of the diameter of the film bubble is small.
4. EPS photoelectric correction system, automatic correction guide, to ensure neat film winding.
5. High-precision mold and high-efficiency air ring cooling system ensure good thickness uniformity of the film and high output efficiency.

Main parameter
