Product Description

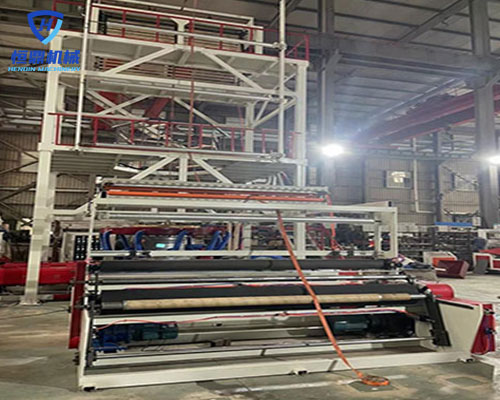

This machine is mainly used for blowing plastic film, greenhouse film and packaging film made of HDPE, LDPE and LLDPE. The barrel and screw of the extruder are made of high-quality alloy steel, which have been chlorinated and precision-machined, wear-resistant and corrosion-resistant, and have automatic temperature control, which is accurate and reliable. It adopts friction double-roll mechanism, automatic meter counting, and easy operation.

Optional equipment

1. Auto loader
2. corona treatment
3. air compressor
4. rotating die head
5. Fast type screen changer
6. double back to back winder
7. air shaft

Main parameter

Model	SJ-ABC-1300	SJ-ABC-1600	SJ-ABC-2200
Suitable materials	HDPE,LLDPE.LDPE	HDPE,LLDPE.LDPE	HDPE,LLDPE,HDPE
Film width	600-1200mm	1000-1500mm	1500-2000mm
Film thickness	0.02-0.025mm	0.02-0.025mm	0.02-0.025mm
Output	180kg/h	220kg/h	280kg/h
Extrusion unit
Screw diameter	Φ50/Φ60/Φ55	Φ60/Φ65/Φ60	Φ65/Φ70/Φ65
Screw L/D	30:1/32:1	30:1/32:1	30:1/32:1
Screw material	Sacm-645/38Crmoala	Sacm-645/38Crmoala	Sacm-645/38Crmoala
Bareeal material	Sacm-645/38Crmoala	Sacm-645/38Crmoala	Sacm-645/38Crmoala
Barrel cooling fan	550w*6	550w*6	550w*9
Main motor	18.5/22/18/5kw	22/30/22kw	30/37/30kw
Barral temperature control	3zone*3	3zone*3	3zone*3
Average power cosume	60kw	80kw	100kw
Die head unit
Die head	Φ250	Φ320	Φ400
Temperatire control	13zones	15zones	15zones
Air ring	dual type air ring	dual type air ring	dual type air ring
Air blower	7.5kw	11kw	11kw
Take up unit
Roller width	1300mm	1600mm	2200mm
Effective width	1200mm	1500mm	2000mm
Take-up speed	10-120m/min	10-120/min	10-120m/min
Take-up motor	1.5kw	2.2kw	3.7kw
Winding unit
Winding type	surface friction type	surface friction type	surface friction type
Winding speed	10-120m/min	10-120m/min	10-120m/min
Voltage	380v,50hz,3phase	380v,50hz,3phase	380v,50hz,3phase
Machine weight	6T	8T	10T
Machine size	7.5*5.5*7.5M	7.5*6*8.5M	7.5*7*9.5M
