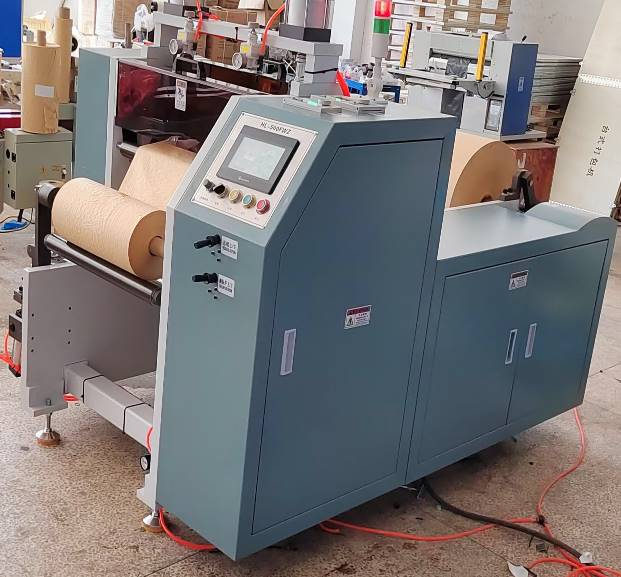

Honeycomb Packing Paper Making Machine

Application


Honeycomb paper is eco-friendly and cost effective alternative for plastic bubble wrap cushioning.It is easy to stretch,more soft and flexible,provide cushion protect without surface scratch.Finished products from this machine can be used to pack fruits,flowers,ceramics, glassware, glass products, cosmetics, electronic products, lamps, furniture, health food, logistics and transportation.etc.

Categories :
Contact Now
  • Description

Honeycomb Packing Paper Making Machine

Machine features

  1. This machine is suitable for die cutting honeycomb paper,wrapping paper,shock-absorbing paper, kraft paper,fish net paper from 70g to 100g.
  2. The unwinding,cutting and rewinding in one process.
  3. Main motor(Siemens brand) equipped with Inverter (Mitsubishi/Delta Brand) for speed regulation.
  4. Computer with PLC (Mitsubishi/Delta brand) controlled, touch screen (Weinview brand).
  5. Bearing NSK (Japan) brand,main machine body with thicker iron plate
  6. Tension controlled automatically by magnetic powder brake and clutch,both is 10 kgs.
  7. Automatic meter counting device,automatically stop after it reaches the length you set.
  8. Pneumatic cylinder to control the cutting module up and down.
  9. Automatic lifting system in unwinding and Web Guiding system

Technical parameters

Machine model 型号 500
Max material width 最大放料宽度 515mm
Machine working speed 速度 0-150m/min
Unwinding diameter 放卷直径 Max. 1200mm
Rewinding diameter 收卷直径 Max. 300mm
Unwinding roll weight 放卷重量 Max. 1 T
Unwinding shaft 放卷气涨轴 3”
Rewinding shaft 收卷气涨轴 1”/1.5”/2”/3”
Machine size 机器尺寸 1850*1350*1300mm (LxWxH)
Machine weight 机器重量 1800 KG
Machine power 机器功率 5 KW
Power supply 电压 380V 3 Phase,50hz
