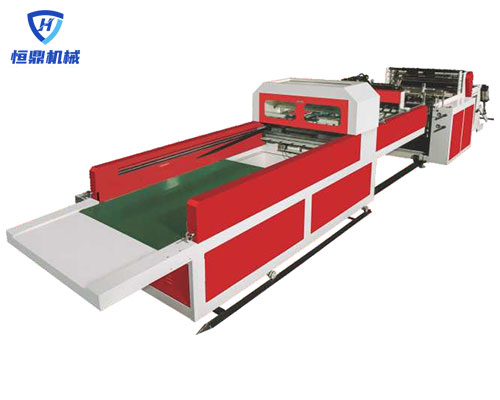

Functions
It belongs to the flat plastic bag-making machine series.It uses computer-controlled servo motor to make the seize error of sealing and cutting bags smallest,Sealing and cutting are carried out at the same time when feeding material,so that the sealing line is not stretched,the sealing fastness of the sealing fastness and reduce the uniformity of bag stretching and feeding.The distance between the cutting and the sealing can be 15mm.
Main Technical Parameter
| Model |
HD-PK1000 |
HD-PK1200 |
| Width of bag |
1000mm |
1200mm |
| Length of bag |
1500mm |
1500mm |
| Film thickness |
0.02-0.3mm |
0.02-0.3mm |
| Production Speed |
80-150pcs/min |
80-150pcs/min |
| Length Error |
±3mm |
±3mm |
| Total power |
8kw |
9kw |
| Air Consumption |
6HP |
6HP |
| Machine weight |
2200kg |
2300kg |
| Overall Dimension(LxWxH) |
7000x1600x1800mm |
7000x1800x100mm |
