Features
- Printing Colors: 2 colors, 4 colors, 6 colors, 8 colors
- Printing Width From 600mm up to 2000mm
- Unwind and Rewind with Auto Tension Control
- PLC Touch Screen Control System
- Ceramic Anilox Roller use Japan Brand (180LPI- 800 LPI)
- Double Side Enclosed Type Doctor Blade
- Printing Cylinder Life use Hydraulic System
- Most Bearing use Japan NSK brand
- Unidirectional Bearing use Germany ASNU Brand

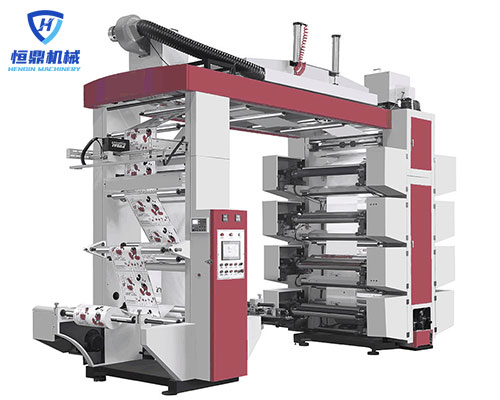

This flexographic printing machine is suitable for roll-to-roll printing Plastic Film, Paper, Non woven fabric, PP woven fabric, Aluminum foil, and other similar roller-type materials.
Main parameter
| Model | GYT8-600mm | GYT8-800mm | GYT8-1000mm | GYT8-1200mm |
| Printing colors | 8colors(ps:8+0,7+1,6+2,5+3,4+4 printing) | |||
| Printing length | 7.5″-40″(also according to clients’ requirement) | |||
| Plate lifting system | Hydraulic pressure control | |||
| Machine speed | 150m/min | |||
| Printing speed | 120m/min | |||
| Anilox roller | Ceramic anilox rollers(50-1000LPI according to printing job) | |||
| Registration precision | Longitude&transerse±0.20MM | |||
| Unwinding&winding diameter | 1000mm(according to clients’requirement) | |||
| Main motor | 2.2kw | 2.2kw | 3.0kw | 3.0kw |
| Unwinder motor | 1.1kw | 1.1kw | 1.5kw | 1.5kw |
| Winder motor | 1.5kw | 1.5kw | 2.2kw | 2.2kw |
| Heating power | 10kw | 12kw | 16kw | 18kw |
| Heating blower | 1.5kw | 1.1kw*2 | 1.1kw*2 | 1.5kw*2 |
| Centrifugal blower | 0.37kw | 0.37kw | 0.55kw | 0.55kw |
| Inking motor | 0.37kw | 0.37kw | 0.37kw | 0.37kw |
| Main inveter | Taiwan Delta | |||
| Bearing | NSK | |||
| Unilateral bearing | ASNU | |||
| Weight | 4500kgs | 4900kgs | 5200kgs | 5600kgs |
| Total power | 20kw | 25kw | 30kw | 35kw |
| Dimension(L*W*H) | 5.2*1.8*3.6M | 5.2*2.0*3.6M | 5.2*2.2*3.6M | 5.2*2.4*3.6M |
