Features
- Printing Colors: 2 colors, 4 colors, 6 colors, 8 colors
- Printing Width From 600mm up to 1600mm
- Unwind and Rewind with Auto Tension Control
- PLC Touch Screen Control System
- Ceramic Anilox Roller use Japan Brand (180LPI- 800 LPI)
- Double Side Enclosed Type Doctor Blade
- Whole machine use USA brand belt drive
- Computer Color Register and Web Video use Germany BST brand
- Back to Back Rewind Design
- Printing Cylinder Life use Hydraulic System
- Most Bearing use Japan NSK brand
- Unidirectional Bearing use Germany ASNU Brand

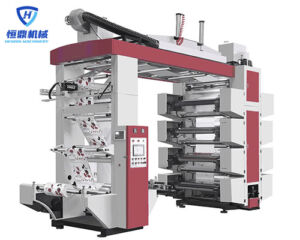

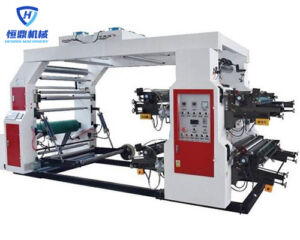

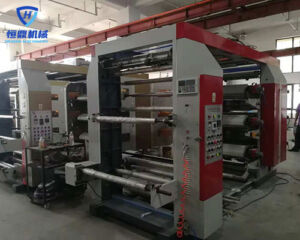

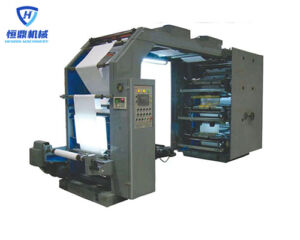

This flexographic printing machine is suitable for roll-to-roll printing Plastic Film, Paper, Non woven fabric, PP woven fabric, Aluminum foil, and other similar roller-type materials
Main Technical Parameter
| Machine model |
HD-E Central Drum Flexo Printing Machine |
| Printing colors |
4colors-8colors |
| Max. Web Width |
800mm-1600mm |
| Max. Printing Width |
760mm up to1560mm |
| Printing Length |
300-900mm |
| Central Drum Roller |
Φ1200mm |
| Printing Plate Lifting System |
Special Designed Pneumatic Pressure Control |
| Max. Mechanical Speed |
180m/min |
| Max. Printing Speed |
150m/min |
| Anilox Roller |
Ceramic anilox roller |
| Register Precision |
±0.1mm |
| Printing Plate Thickness |
Standard 2.28mm |
| Unwinding/Rewinding Diameter |
Φ1200mm |
| Main Motor |
5.5kw |
| Rewinding Motor |
3kw |
| Electrical Heater Power |
36kw |
| Blower Power |
1.5kw*2 |
| Ink Motor |
0.12kw*6 |
| Power Supply |
3Phase 4Line 380V 50Hz |
| Weight |
About 8000kg |
| Dimension(L*W*H) |
6200*2500*3200mm |
