Features
- Printing Colors: 2 colors, 4 colors, 6 colors, 8 colors
- Printing Width From 600mm up to 2000mm
- Unwind and Rewind with Auto Tension Control
- PLC Touch Screen Control System
- Ceramic Anilox Roller use Japan Brand (180LPI- 800 LPI)
- Single Side Type Doctor Blade
- Printing Cylinder Life use Hydraulic System
- Most Bearing use Japan NSK brand
- Unidirectional Bearing use Germany ASNU Brand

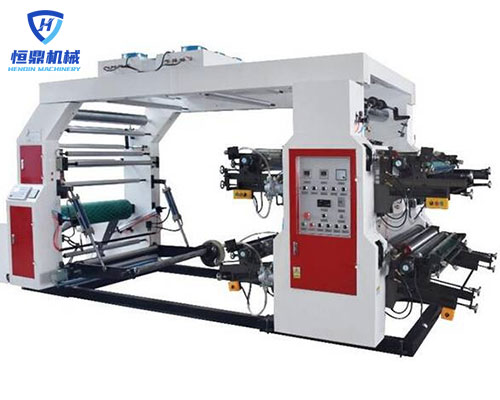

This flexographic printing machine is suitable for roll-to-roll printing Plastic Film, Paper, Non woven fabric, PP woven fabric, Aluminum foil, and other similar roller-type materials.
Main parameter
| Model | GYT4-600mm | GYT4-800mm | GYT4-1000mm | GYT4-1200mm |
| Printing colors | 4colors(ps:4+0,3+1,2+2 printing) | |||
| Printing length | 7.5″-40″(also according to clients’ requirement) | |||
| Plate lifting system | Hydraulic pressure control | |||
| Machine speed | 100m/min | |||
| Printing speed | 80m/min | |||
| Anilox roller | Ceramic anilox rollers(50-1000LPI according to printing job) | |||
| Registration precision | Longitude&transerse±0.20MM | |||
| Unwinding&winding diameter | 1000mm(according to clients’requirement) | |||
| Main motor | 2.2kw | 2.2kw | 3.0kw | 3.0kw |
| Unwinder motor | 1.1kw | 1.1kw | 1.5kw | 1.5kw |
| Winder motor | 1.5kw | 1.5kw | 2.2kw | 2.2kw |
| Heating power | 6kw | 8kw | 10kw | 12kw |
| Heating blower | 1.5kw | 1.1kw*2 | 1.1kw*2 | 1.5kw*2 |
| Centrifugal blower | 0.37kw | 0.37kw | 0.55kw | 0.55kw |
| Inking motor | 0.37kw | 0.37kw | 0.37kw | 0.37kw |
| Main inveter | Taiwan Delta | |||
| Bearing | NSK | |||
| Unilateral bearing | ASNU | |||
| Weight | 4000kgs | 4200kgs | 4500kgs | 4800kgs |
| Total power | 12kw | 15kw | 19kw | 21kw |
| Dimension(L*W*H) | 4.0*1.8*2.9M | 4.0*2.0*2.9M | 4.0*2.2*2.9M | 4.0*2.4*2.9M |
