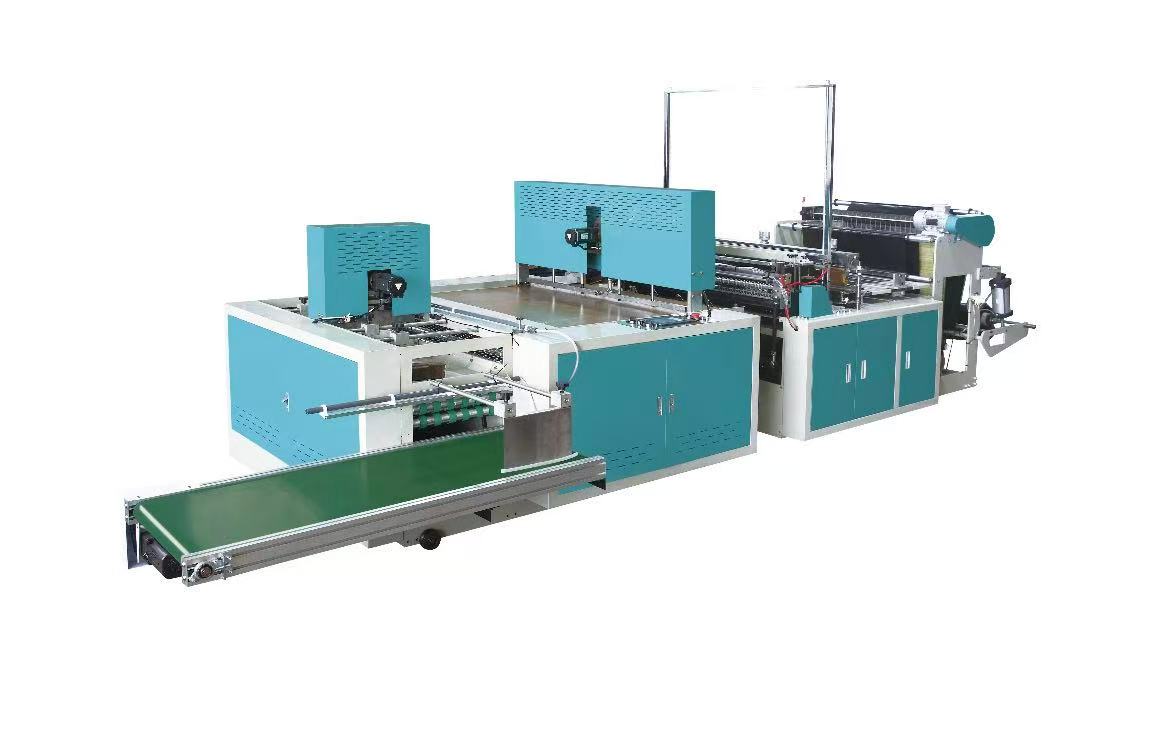

Flat Type Garbage Bag Making Machine with 3 Folding Unit

DESCRIPTION
Fully Automatic T-shirt Type Garbage Bag Making Machine with In-line 3 Foldings Unit

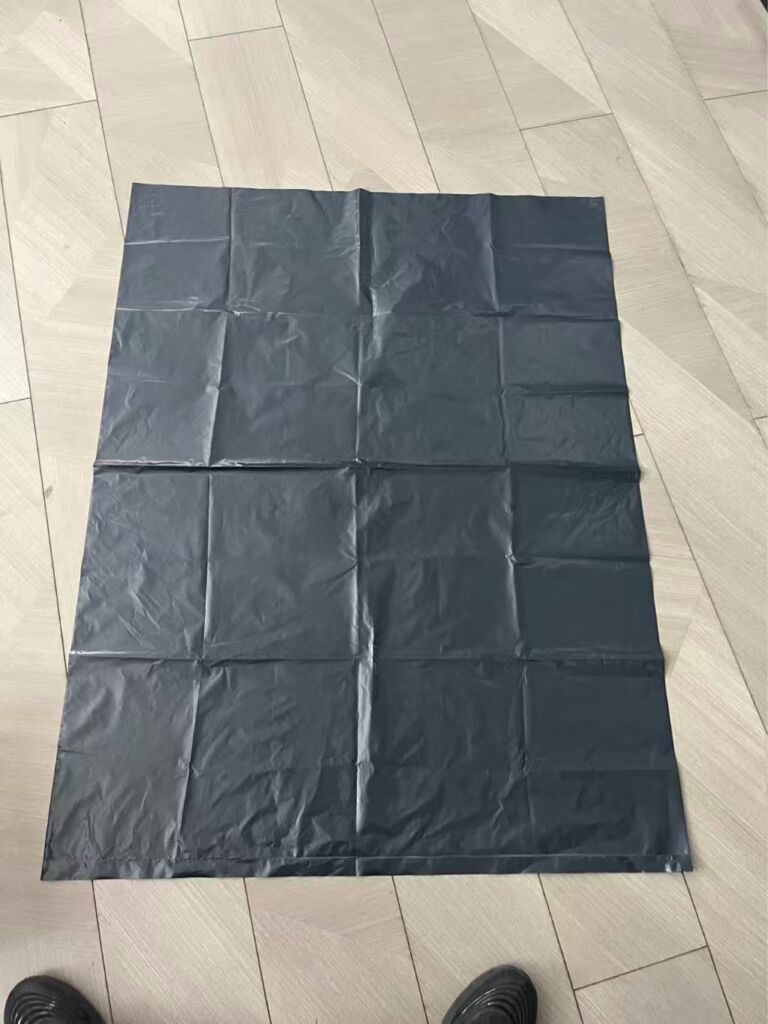

HD+3F is for 1 line printed or non printed T-shirt type garbage bags with 3 times folding, first 2 times folding of bag’s length and last time folding of bag’s width at maximum speed 50-60 bags/min.
Machine Features:
1.One setDomestic brand servo motor and servo drive control bag’s length precisely and stable speed, reducing electric consumption.
2.Three setsDomestic brand servo motors with servo drives for first 2 times folding of bag’s length and last time folding of bag’s width.
3.Two touch screens, one for bag’s length and production speed on main machine, another one for timing parameters and quantity per stack on folding unit.
4.One set German made SICK photocell for 1 line accurate printed bags.
5.Automatic conveyor device for collecting finished bags.
6.Machine stops automatically when:
1)Bags jammed.
2) Film is finished or broken.
Technical parameter:
| Model | HD-3F800mm | HD-3F1000mm |
| Bag width | 100-700mm | 100-900mm |
| Bag length | 600-1500mm | 600-1500mm |
| Bag thickness | 0.01-0.20mm | 0.01-0.20mm |
| Bag capacity | 50-100pcs/min | 50-100pcs/min |
| Unwinding diameter | 800mm | 800mm |
| Power required | 11KW | 12KW |
| Copper knife heating power | 2.8KW | 2.8KW |
| Voltage | 220V 50Hz | 220V 50Hz |
| Machine weight | 1.9T | 2.1T |
| Machine dimension | 6000x1900x1800mm | 6000x2100x1900mm |
