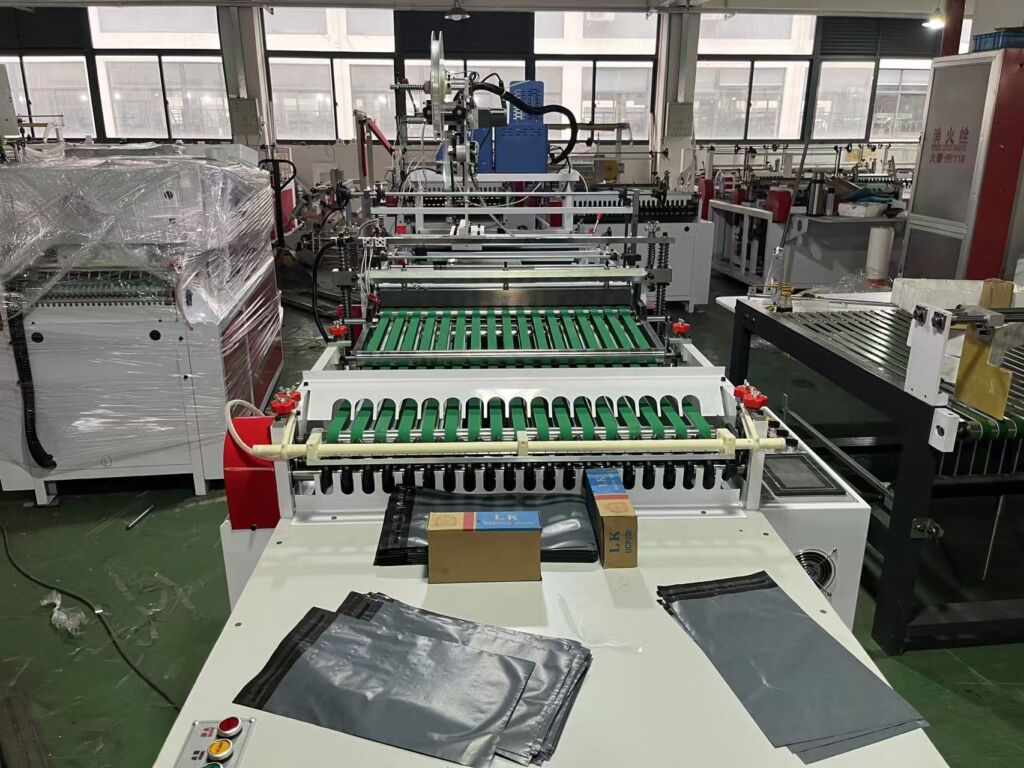

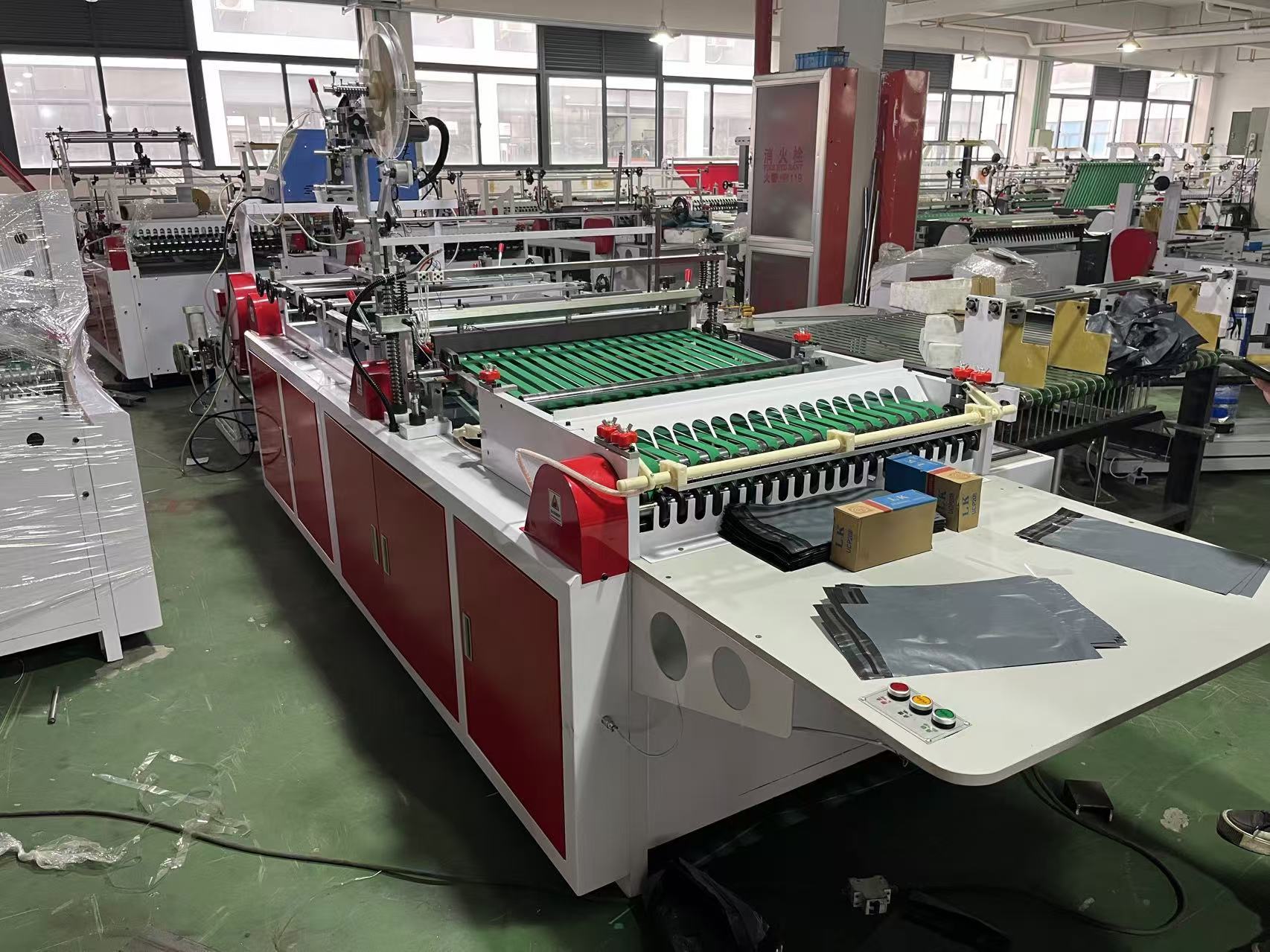

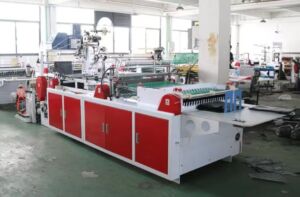

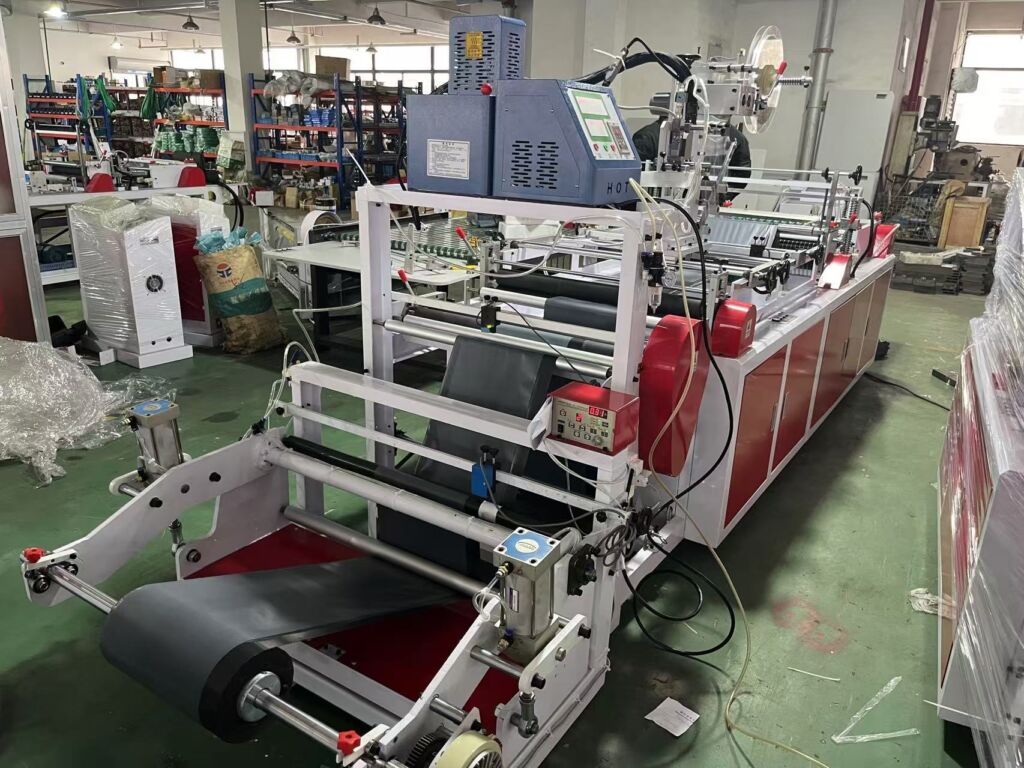

Plastic Courier Bag Making Machine/Side Sealing Machine
一.Characteristic:
1.adopt touch screen man-machine interface, double servo motor and motion control system. Auto counting and collecting.
2.length fix, high precision photosensitive eye tracking, features stable, accurate and auto stop and alarm when the tracking failsure.
3.auto feeding and auto rectifying deviation
4.adopt special processing thermal cutting knife, performance is good, non-sticking, sealing firm and smoothing.
5.equipped with hot melt glue machine, with function of auto glue cutting, isolating membrane glue feeding and adjustable of glue capacity
6.adopt high-end glue spray gun, width of glue spray can be adjust, glue cutting precision and clean, no glue failsure
7.Main motor, feeding motor and unwinding motor adopts frequency inverter control, operation is easy, production stable and lower the power consumption
8.Machine frame steel adopts laser cutting, and delivery roll adopt hard anode oxidation
二.Main Technical Parameter:
| Model | KD-800mm | Sealing knife | Special knife |
| Max. Cutting width | 750mm | Static controller | 16kv |
| Max. Cutting length | 750mm | static bar | 820mm |
| Production Speed | 30－220pcs／min | ||
| Film thickness | 0.01mm-0.10mm | Glue Sprayer | Bolun |
| Dimension（L×W×H） | 5300×1300×1900mm | Computer | HHGK |
| Main motor | Shanghai brand 1.1kw | Edge correction | Material feeding Edge correction |
| Length-fixed motor | Double servo motor | Material feeding | Pneumatic loading |
| Inverter | Dovel 1.5kw | Gluing | With auto-cutting glue function |
| Front&back feeding motor | Frequency motor | Solid relay | Taiwan Yangming |
| Valve | AirTac | Temperature controller | Yatai |
| Photosensitive | Panasonic | ||
