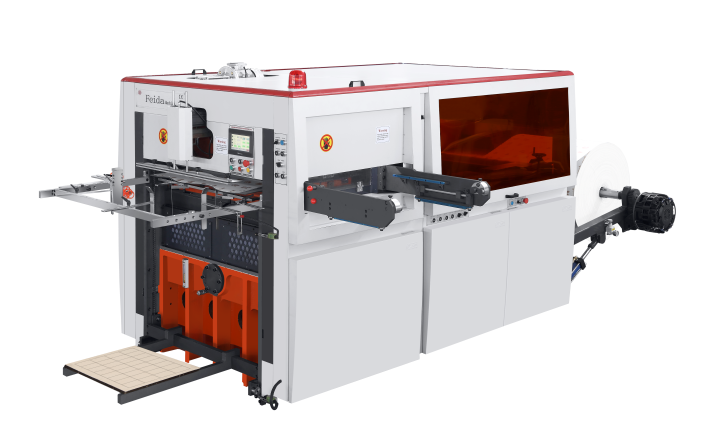

Paper Die Cutting Machine
Introduction:
Automatic web die-cutting machine based on international advanced technology, has a high stability, high safety performance, high precision of the finished product, it’s widely used in printing, packaging and paper products industries. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic cluth, centralized oil lubrication, overload protection and distinctive gearing. So it guarantees smooth operations of returning paper and feeding paper, precise positioning and orderly withdrawing. All the key parts and controls of the machine are imported. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, safety and reliability.
Technical Specification
| Model 型号 | HD970x550 |
| Max cutting area 最大模切尺寸 | 940mmx520mm |
| Cutting precision 模切精度 | ±0.15mm |
| Paper gram weight纸张克重 | 120-500g |
| Production capacity 生产速度 | 130-180times/min |
| Air pressure requirement气压需求 | 0.5Mpa |
| Air pressure consumption用气量 | 0.25m³/min |
| Max cutting pressure最大模切压力 | 180T |
| Weight机重 | 5.6T |
| Max roller diameter最大放卷直径 | 1600mm |
| Total power总功率 | 12KW |
| Dimension外形尺寸 | 4200×2300x1800mm |
| NOTE：
We also have different models for different paper size,if any different requirement,we also can make the machine based on the client’s requirement. |
|
