Functions

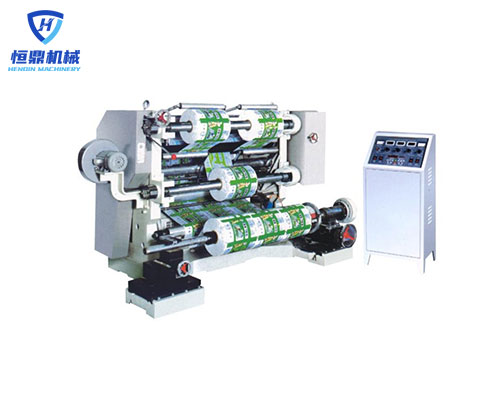

This type of slitting machine is suitable for slitting PE, PP, EVA, PET, PVC and other plastic films, paper, composite films, and aluminum plating Film, printing film.It is an ideal structure for secondary processing of film packaging technology and color printing.
Features
- Use Round/straightSlitting Knife
- With Auto Length Counting System
- Unwind and Rewind with Tension Control
- Unwind with EPC Control System
- Unwind and rewind use Air Shaft
- Inverter use Import Brand
- Electrical Part use Schneider Brand
- Optional:Unwind Shaft Type Auto Loading
- Optional: Unwind Shaft-less with Auto loading
Main Technical Parameter
| Model | LFQ-A1100 | LFQ-A1300 | LFQ-A1600 |
| Max. material width | 1100mm | 1300mm | 1600mm |
| Slitting width | 30-1100mm | 30-1300mm | 30-1600mm |
| Thickness of material | 0012-0.2mm | 0012-0.2mm | 0012-0.2mm |
| Max. mechanical speed | 5-150m/min | 5-150m/min | 5-150m/min |
| Total power | 5.5KW | 6.5KW | 8.5KW |
| Max.unwind diameter | 800mm | 800mm | 800mm |
| Max. rewind diameter | 500mm | 500mm | 500mm |
| Weight of machine | 1600KG | 1800KG | 2000KG |
| Overall dimension(L×W×H) | 3000×2200×1800mm | 3000×2400×1800mm | 3000×2700×1800mm |
