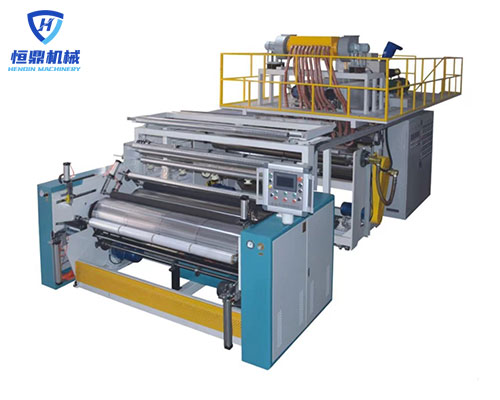

This line is designed for producing single/double-side self-adhesive double/three-layer stretch film by extruder with LLDPE and several kinds of resins.
Features of Machine
Compact structure, high cost performance, double-layer or three-layer co-extruded, automatic roll change, high quality appearance and performance.
Characteristics of Product
1.Better tensile strength, puncture resistance and impact strength.
2.Good shrinking memory and self-adhesion can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust.
3.Good transparency and extensibility can make the package beautiful, economical and practical.
Main Applications of Product
| Model | 1000mm double-layer/three-layer co-extruded cast stretch film line | |
| Screw Dia. | 55mm/80mm | 55mm&90mm&55mm |
| L/D | 32:1 | 32:1 |
| T-Die Width | 1300mm | 1300mm |
| Finished Film Width | 500mmx2 rolls | 500mmx2 rolls |
| Finished Film Thickness | 0.015-0.05mm | 0.015-0.05mm |
| Structure of Film | A/B,A/B/A | A/B/C |
| Max.Output | 150kg/hr | 200kg/hr |
| Design Line Speed | 120m/min | 145m/min |
| Total Power | 130kw | 190kw |
| Power Supply | 380v/3ph/4line/50hz | |
| Dimension | 10000*6000*4500mm | 12000*7000*4500mm |
The film can be widely used in wrapping of palletized goods. It’s a good substitute for hot shrink packaging film
