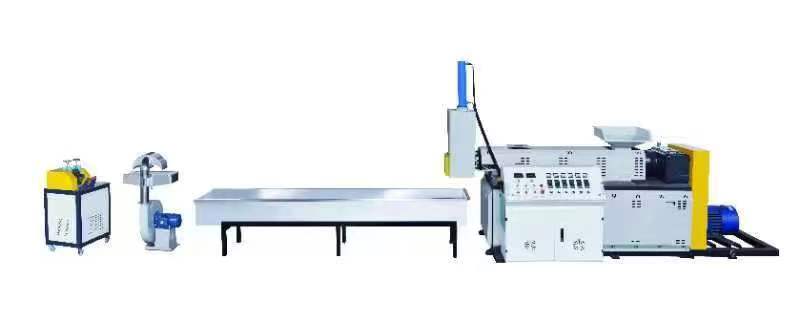

HT-120F Single Screw Air-Cooled Granulator
1.Feature:
1)This machine suitable for PE, PBAT waste film recycle, and then granulator int granules;
2)Machine with safety shield, more safety operate and temperature more stable;
3)Finished granule can mix with new material use, it can save factory cost.
Main Technical Variables:
| Model | SJ-F120 Single Screw Air-Cooled Granulator |
| Type Diameter of Screw Stem | Φ120mm with SACM-645/38 CRMOALA material |
| Main extruder | |
| Screw&barrel | 120mm |
| Major Diameter Ratio of Screw Stem | 1:22 |
| Main motor | 225 hardness gear reduction box |
| Main Motor Power | 37kw with inverter control |
| Type Diameter of Screw Stem | Φ120mm with SACM-645/38 CRMOALA material polished with Niterided Treatment hardness of heat treatment: screw HV≥740, barrel HV≥900,depth:0.6-07mm |
| Heating zone | 4zoncs on screw&barrel with ceramic heating and 2zone on die head with stainless steel heating |
| With hydraulic pressure non-stop screen changer with 250*250 | |
| With 1.5kw motor cutter with 2pcs knife | |
| With stainless steel tank for granules (1ton capacity) | |
| With 3pcs cooling system | |
| Output | 100-150kg/hr |
| Dimension | 5.2×3.5×2.5m |
| Power supply: | 380V 50HZ |
