Feature

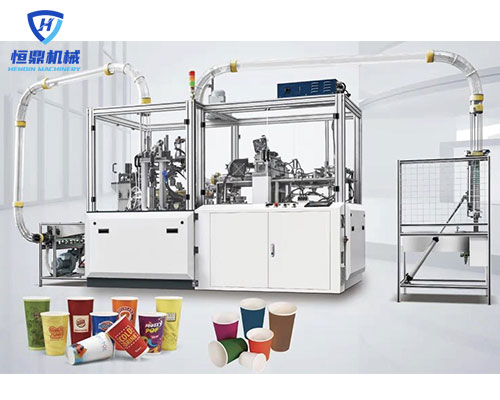

- High speed double wall cup machine is an equipment with multi-running positions, which is used to form the outer sleeve for paper cups and paper bowls.
- It adopts the micro computer system to control the frequency changing, forming and sealing are done by
- two separate turn plates, thus,tall cups could be made at a high speed.
- This machine adopts micro computer system to control the frequency changing meter and step less governor. Such add automatic paper sending,ultrasonic welding,double cylinder,mechanic transmission which fills in the blank of double wall paper cup forming equipment in China.
- It is an ideal equipment of making two/double walls paper cups/bowls such as direct-sleeve cups, hollow-sleeve cups, rippled/corrugated-sleeve paper cups etc. The sleeve-wrapped paper cups are popular for hot drinks (tea, coffee etc).
Technical Data
| Cup size | 4-35oz |
| Paper thickness | 170-350gsm paper sheet |
| Raw material | One-side PE (polyethylene) film coated / laminated paper Ultrasonic machine can be produce single and double PE paper |
| speed | 80-100 pcs/min |
| Electrical source | 220-380v |
| Total power | 5kw |
| Weight | 3300kg |
| Overall dimensions | 2500*1300*1600mm |
| Double wall cup machine is suitable for the production of insulated cups for hot coffee, hot noodles and
soups. It can make cups with different sizes by changing moulds. |
|
