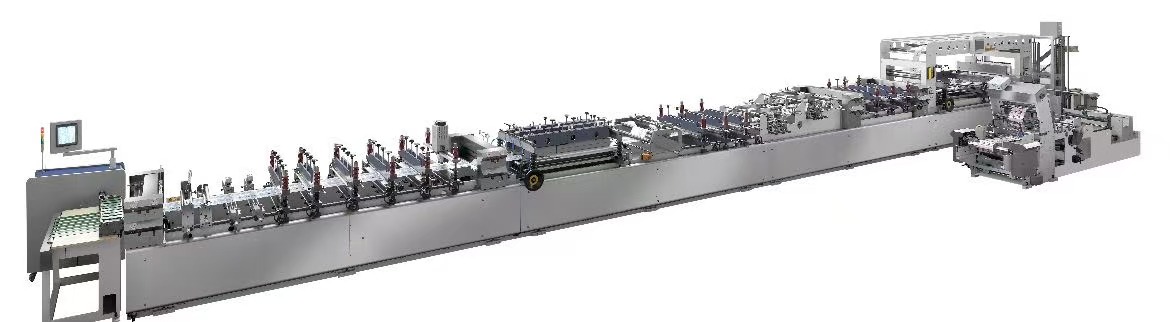

HD-ZUF600 Square bottom bags with zipper bag making machine
Feature
This machine processing and assembly is superior, shape is beautiful and structure is reasonable. The whole machine can run smoothly with low noise. It is easy to adjust zipper. Bag hole can be punched accurately. The speed is fast. The machine adopts PLC three servo traction control, temperature centralized control, reducing electricity consume. The feeding system adopts constant tension control, and ensures the smoothness of the material and the accuracy of the control. Middle tension floating roller adopts dynamic compensation mode, to make the process of pulling material fluctuates slightly. Tension control is stably. The creasing overlaps and stability of horizontal and arc heating knife are good.
1.Technical Parameter:

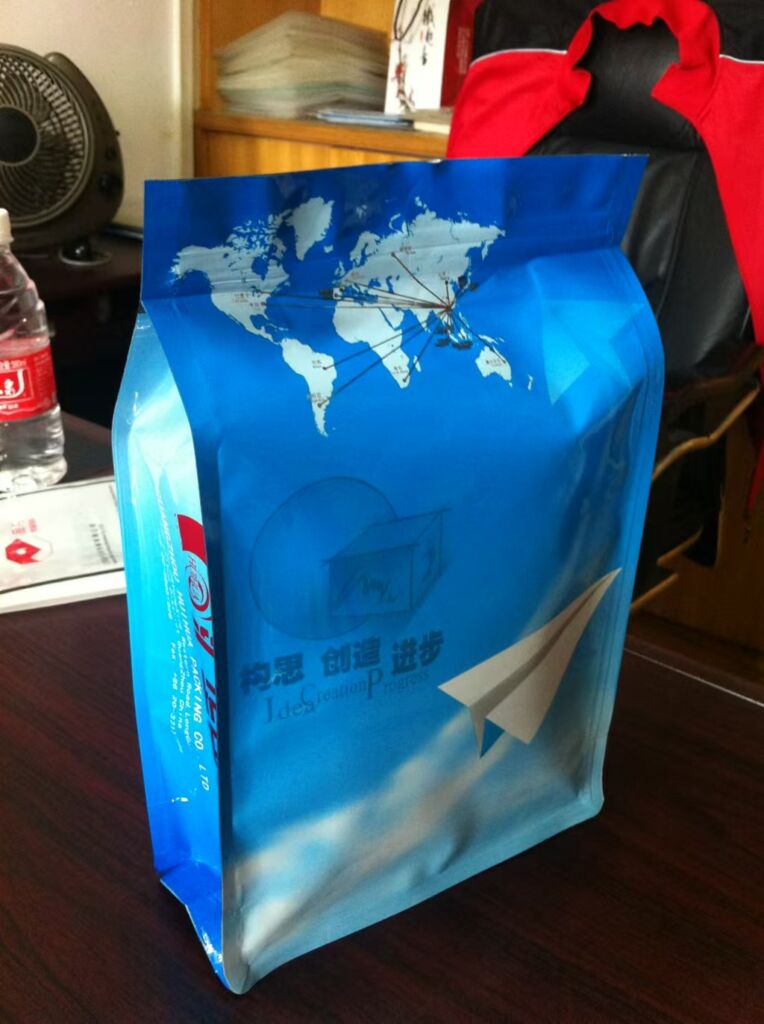

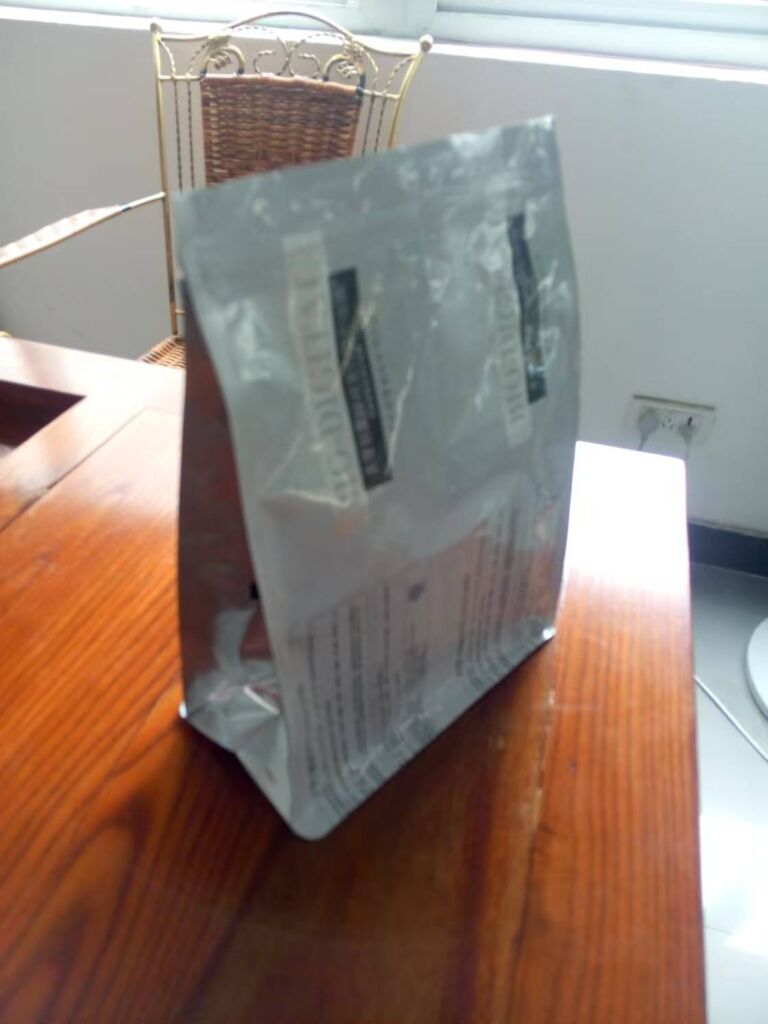

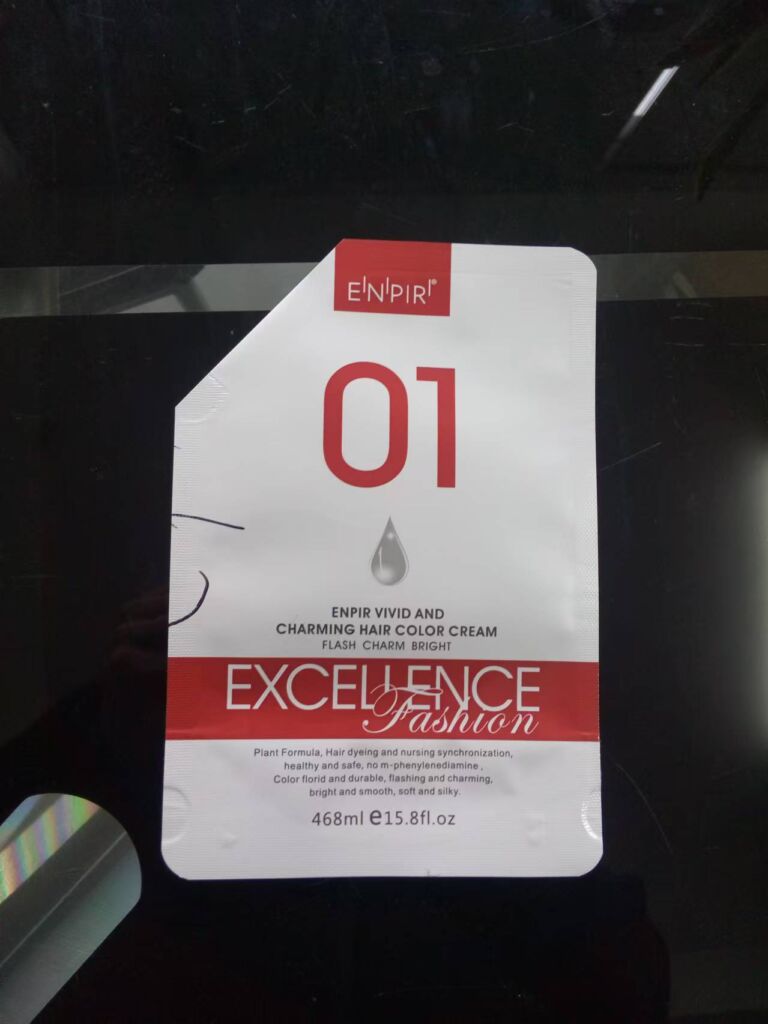

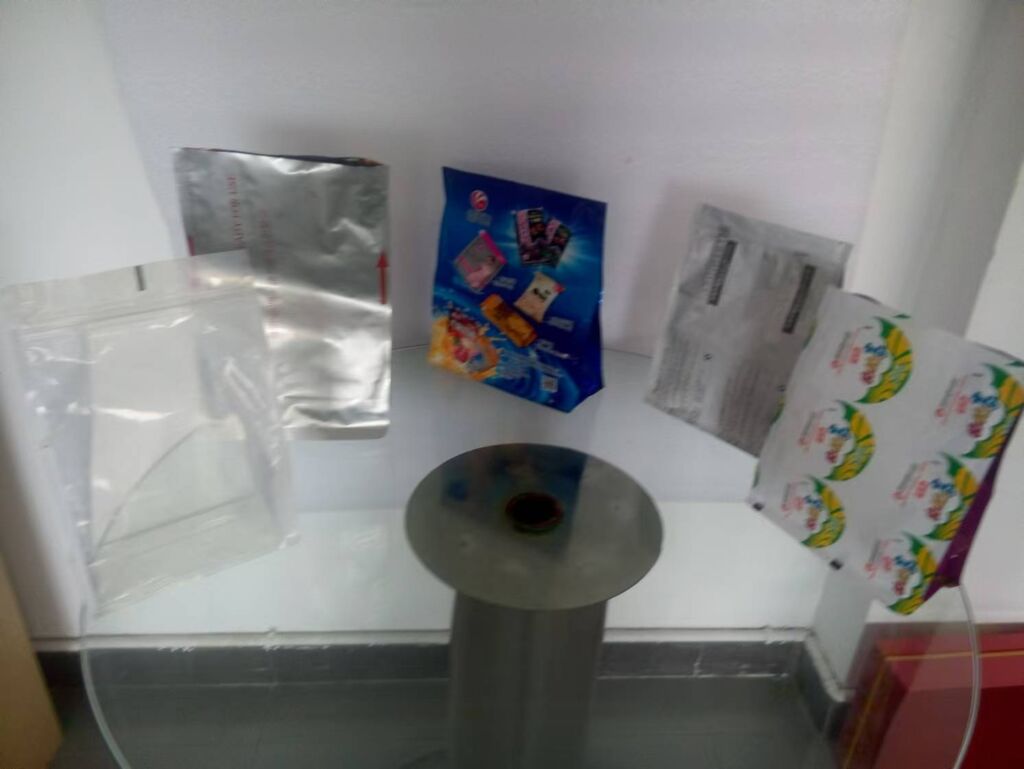

Function: Four blank bag, single out square bottom bags with zipper, single out four pressure side zippered pockets.
Main Electric Device: Thirteen Servo Motors, Panasonic PLC, AC motor masterdrive, Panasonic frequency converter, Temperature control 27 Road, Tension control unwinding.
Base material: two-layer or multi-layer three-side sealing laminated film pouches with zipper sealing and doy-pack making function which take BOPP, PET, CPP, PE, nylon, aluminum foil and paper as base material.
Max working speed: 100 times/min
Max unwinding line speed: ≤30 meter/min (subject to base material)

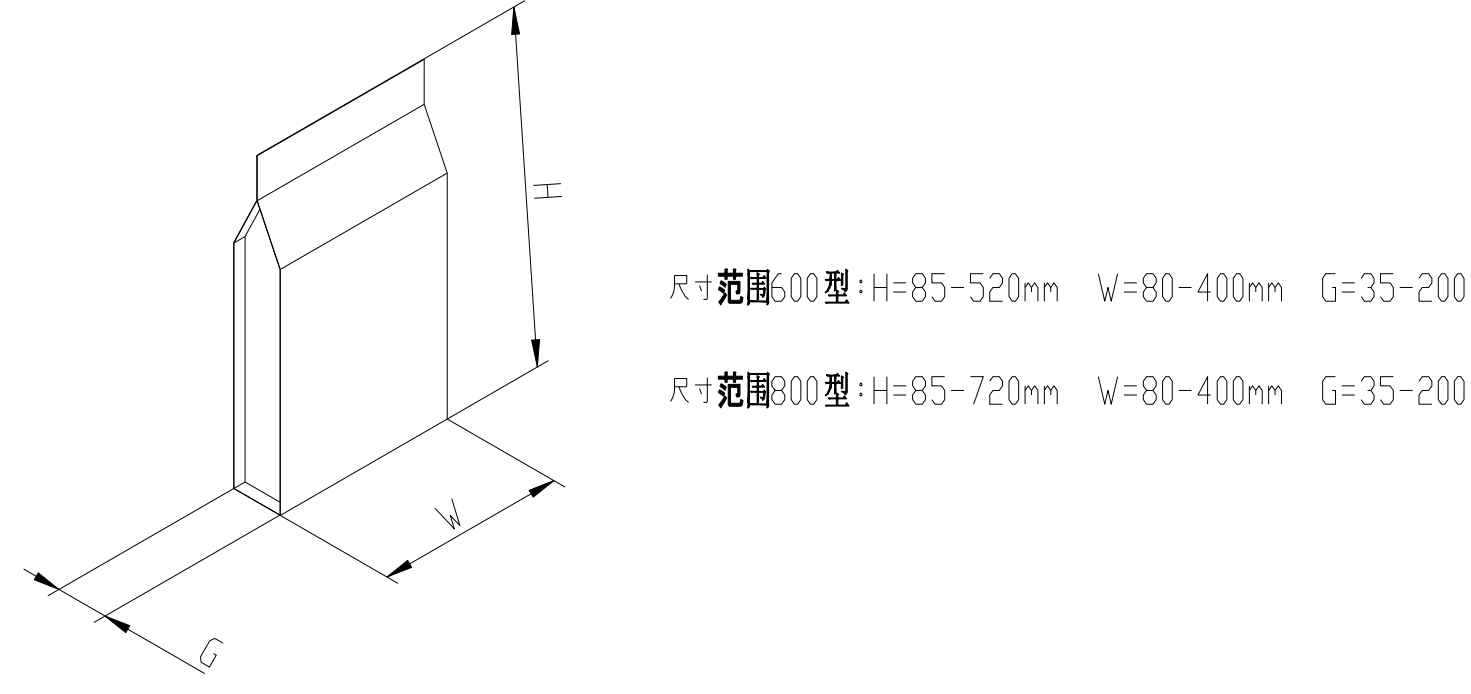

Making bag size: length (400mm), It adopts times to send when the length is more than 400mm. (Max times to send is six)
Max width of bag: 520mm
Max size of roll material: φ600×1250mm（Diameter×Width）
φ600×1250mm（Diameter×Width）
Location precise: ≤±0.5mm
Heating sealing knife quantity: 2 groups of the upper and lower longitudinal sealing using heating, cooling down
Vertical chain with 4 groups warming up and down, up and down the cooling
5 groups of the upper and lower transverse seal using heating, cooling down the two groups.
Bottom material hot pressed using two groups on heating, a set of cooling
Four hot foil stamping blank plastic material is heated using two groups
Four blank material fixed hot pressure using a set of heated
Temperature electric heating quantity: 27 piece.
Temperature range: 0~350℃
Total Power: 80Kw (Starting power is about 55kw, in condition of keeping warm, power is about 45kw)
Overall dimension: 23000×3000×1950mm（L×W×H）
Net weight: About 9000 kg.
Machine steel plate thickness: 10mm (Made in Shanghai, Baosteel)
Control system Model: Japan Panasonic PLC Laminating Film High speed bag making machine control system.
