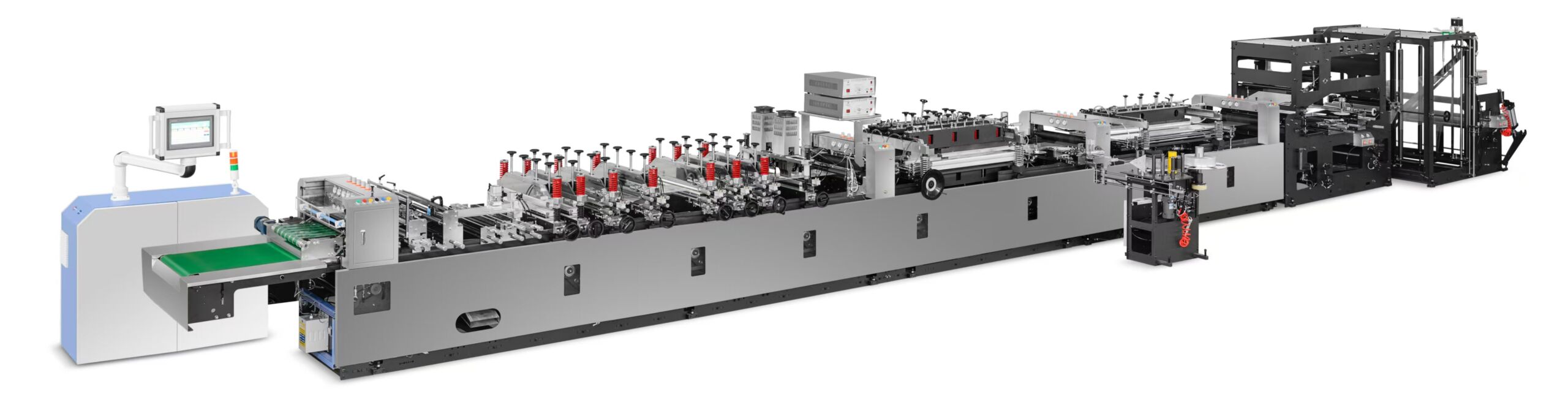

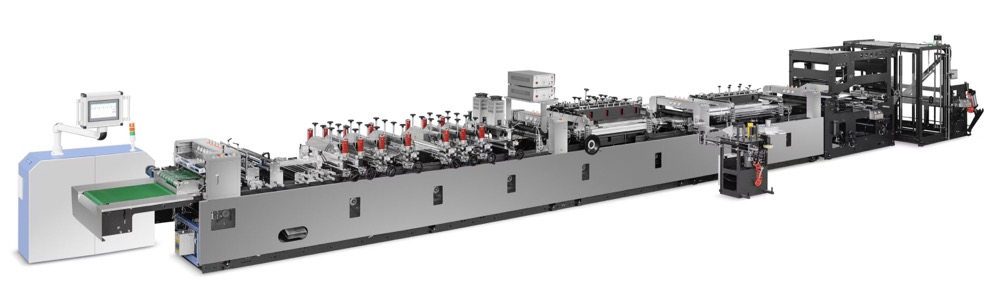

HD-ZUE600 High Speed Laminated Food Packaging Bag Stand-Up Zipper Pouch Making Machine
Brief Introduction:
Newly design multifunction laminated bag making machine, it can manufacture 3 side sealing bag, 3 side sealing with zipper bag,central sealing and single film insert stand up bag. Easy to operate, fast to change different type bag making device. Optional of the spout inserter and the corner punch.
1. It adopts JAPAN YASKAWA servo motor system
2. EPC control maintain the stability of film feeding.
3. Multifunction of bag making:three side sealing bag making,stand up bag making
4. Easy to change the function
Machine specification
| Model | HD-ZUE400 | HD-ZUE500 | HD-ZUE600 |
| Max.diameter of roll material | Φ600 | Φ600 | Φ600 |
| Max.width of roll material | 850mm | 1050mm | 1250mm |
| Max.Speed | 250pcs/min | 250pcs/min | 250pcs/min |
| Material feeding speed | 50m/min | 50m/min | 50m/min |
| Max.bag making width | 400mm | 500mm | 600mm |
| Bag-making length | 50-2400mm | 50-2400mm | 50-2400mm |
| Total power | 55kw | 60kw | 65kw |
| Machine weight | 6500kg | 7000kg | 7500kg |
| Machine dimension | 15000*1300*1870mm | 15000*1400*1870mm | 15000*1500*1870mm |
