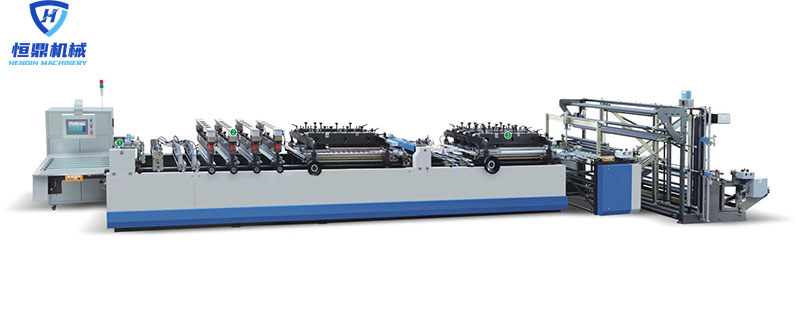

HD-ZUB400/500/600 THREE SIDE SEALING&MIDDLE SIDE SEALING POUCH MAKING MACHINE

PERFORMANCE AND CHARACTERISTICS

1. Wholemachine controlled by central PLC control system with man-machine. More stable performance,easy for operation and maintenance.Chinese and English interface language can be shifted easily
2. Constant auto-tension control for unwinding,LPC edge alignment,AC inverter
constantspeed auto material feeding
3. Imported double servo-motor material dragging control system
4. Main motor for up-down sealing and pressing equipped with irverter
5. PID for sealing bar temperature adjustment,notouchautocontrol,centrallzed setting in man-machine interface.
6. Equipped with Pneumatic multi-functionauto punching device,trim cutting and auto rewinding and static eliminator
7. Temperature adjustment range:0~300℃
8. Counter:quantity,batch accumulation,pre-set available.
9. Operation Method:by length fixation control and/or by photocell tracking control. 10.Punching device:working rhythm canpre-set as continuous,inberval or stop, punching time can be pre-set.
10. Material Skip Feeding:one to six times available.
11. Batch Conveying Function available,the quantity of batch can be preset.

Machine specification
