Suitable range

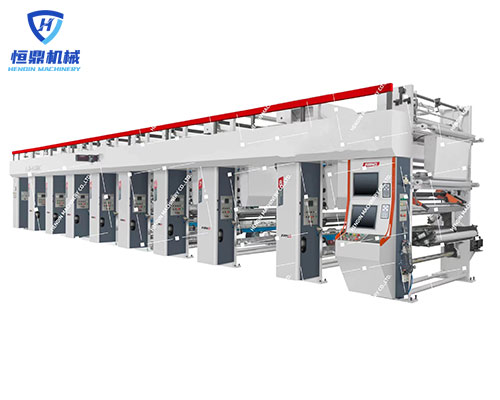

This Rotogravure Printing Machine is suitable for roll-to-roll printing materials such as BOPP, CPP, PET, PVC, PE, Nylon, Metalized Film, Paper, Cellophane, Aluminium Foil, etc. It is widely used in high-quality packaging material printing industries.
Main parameter
| Suitable material: | BOPP：15-60um PET：12-60um PVC:30-60um
CPP：25-60um PE：40-100um Cellopaper：20-30um paper：30-80g Laminated film：15-60um And other roll type materials with similar characteristics to abovementioned items |
| Printing color quantity: | 8color(add or reduce the color quantity based on client’s requirement) |
| Machinery speed: | 150m/min |
| Printing speed:
|
10-120m/min(printing speed is referring that :material,ink,picture of printing,diameter of plate, and operator) |
| Register error:
|
Vertical ≦0.12mm(Automatic Color Register)
Horizontal ≦0.15mm(Manual control) |
| Diameter of printing plate: | ø100mm~ø320mm |
| Machine total power : | 150kw(8colors) |
| Max printing width | 600mm/800mm/1000mm/1200mm |
| Max material width | 650mm/850mm/1050mm/1250mm |
| Max diameter of unwinding and rewinding: | ø600mm |
| Pressure source: | 0.8mpa |
| Scope of tension
|
3-25kg
|
| Tension precision: | ±0.3Kg |
| Overall demensions: | 13500X 2550X 2600mm |
| Weight of machine: | 14ton |
