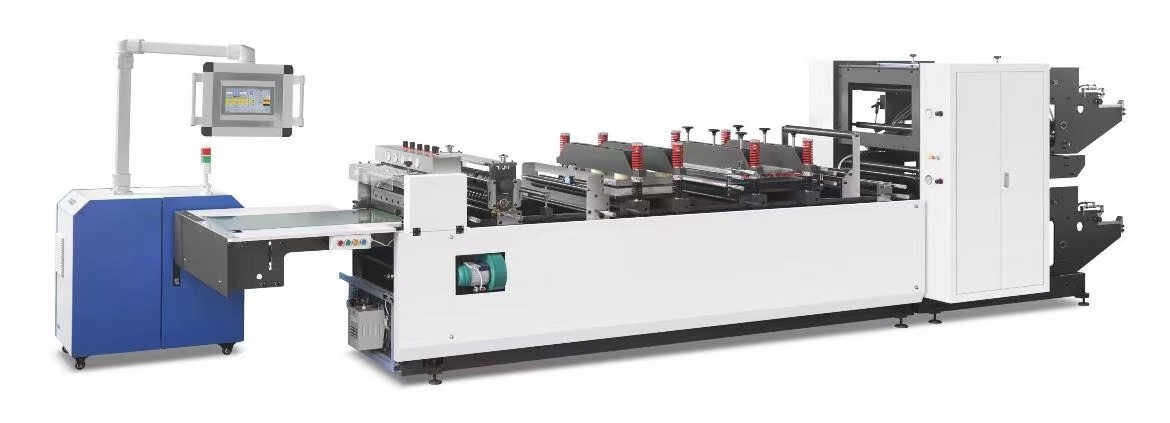

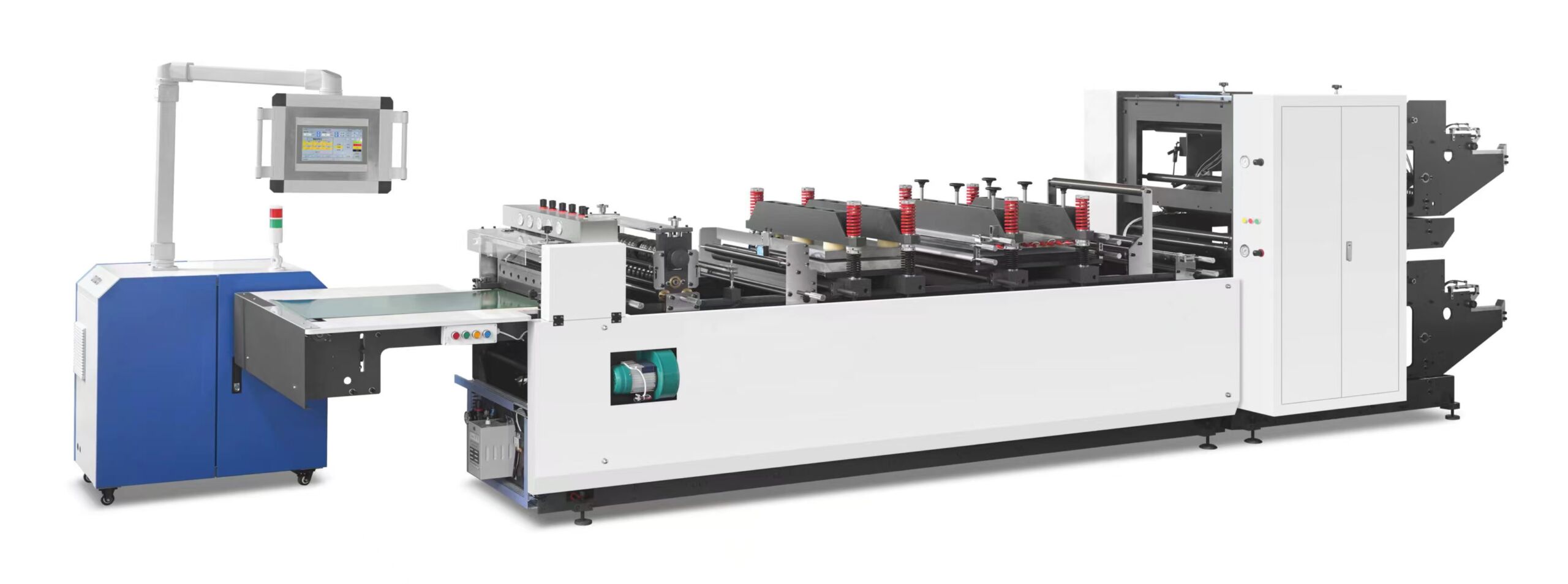

HD-600mm Medical Paper Plastic Pouch Making Machine
Feature：
This machine processing and assembly is superior, shape is beautiful and structure is reasonable. The speed is fast. The machine adopts PLC two servo traction control, temperature centralized control, reducing electricity consume. The feeding system adopts constant tension control, and ensures the smoothness of the material and the accuracy of the control. Middle tension floating roller adopts dynamic compensation mode, to make the process of pulling material fluctuates slightly. Tension control is stably.
1.Technical Parameter:

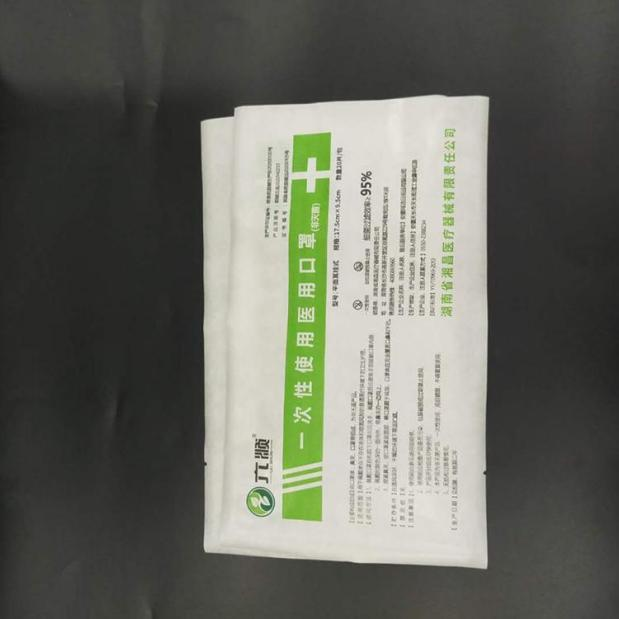

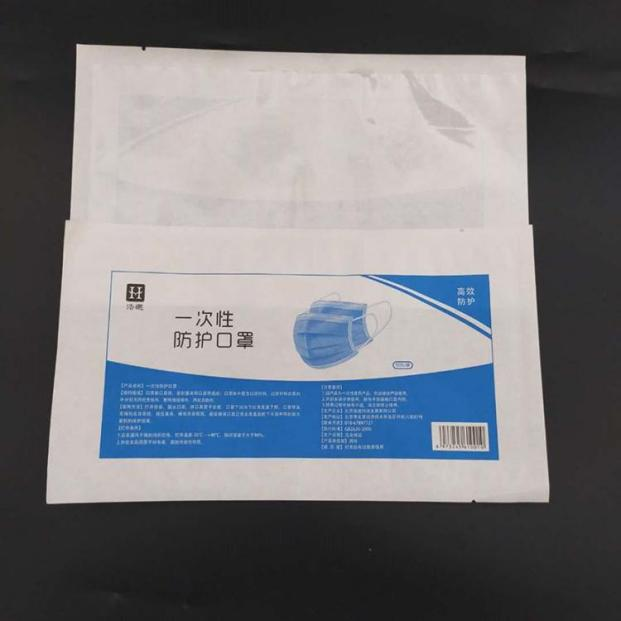

Function: Medical paper plastic bag/Medical sterilization bag
Main Electric Device: One Servo Motor, Panasonic PLC, AC motor masterdrive, Panasonic frequency converter, Temperature control 4 Road, Tension control unwinding.
Base material: two-layer or multi-layer three-side sealing laminated film pouches with zipper sealing and doy-pack making function which take BOPP, PET, CPP, PE, nylon, aluminum foil and paper as base material.
Max working speed: 150 times/min
Max unwinding line speed: ≤38 meter/min (subject to base material)
Making bag size: length (400mm), It adopts times to send when the length is more than 400mm. (Max times to send is six)
Max width of bag: 600mm
Max size of roll material: φ600×650mm（Diameter×Width）
φ600×650mm（Diameter×Width）
Location precise: ≤±0.5mm
Heating sealing knife quantity: Transverse Knife: 1 set warming up and down. 1 set cooling up and down.
Temperature electric heating quantity: 2 piece.
Temperature range: 0~300℃
Total Power: 21Kw (Starting power is about 16kw, in condition of keeping warm, power is about 12kw)
Overall dimension: 5800×1500×1900mm（L×W×H）
Net weight: About 2800 kg.
Machine steel plate thickness: 10mm (Made in Shanghai, Baosteel)
Control system Model: Japan Panasonic PLC Laminating Film High speed bag making machine control system.
