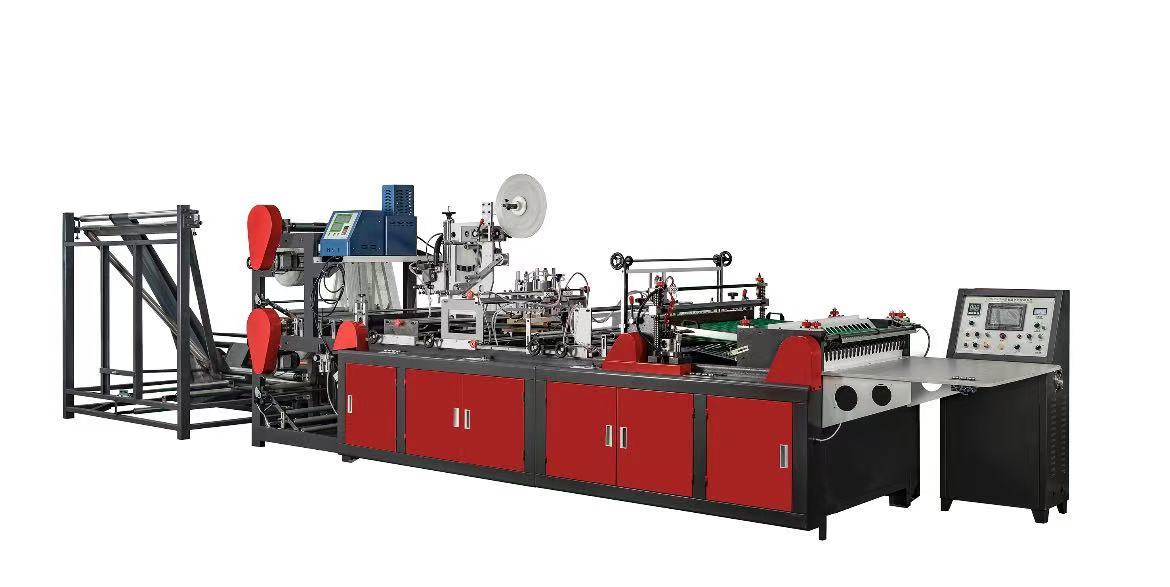

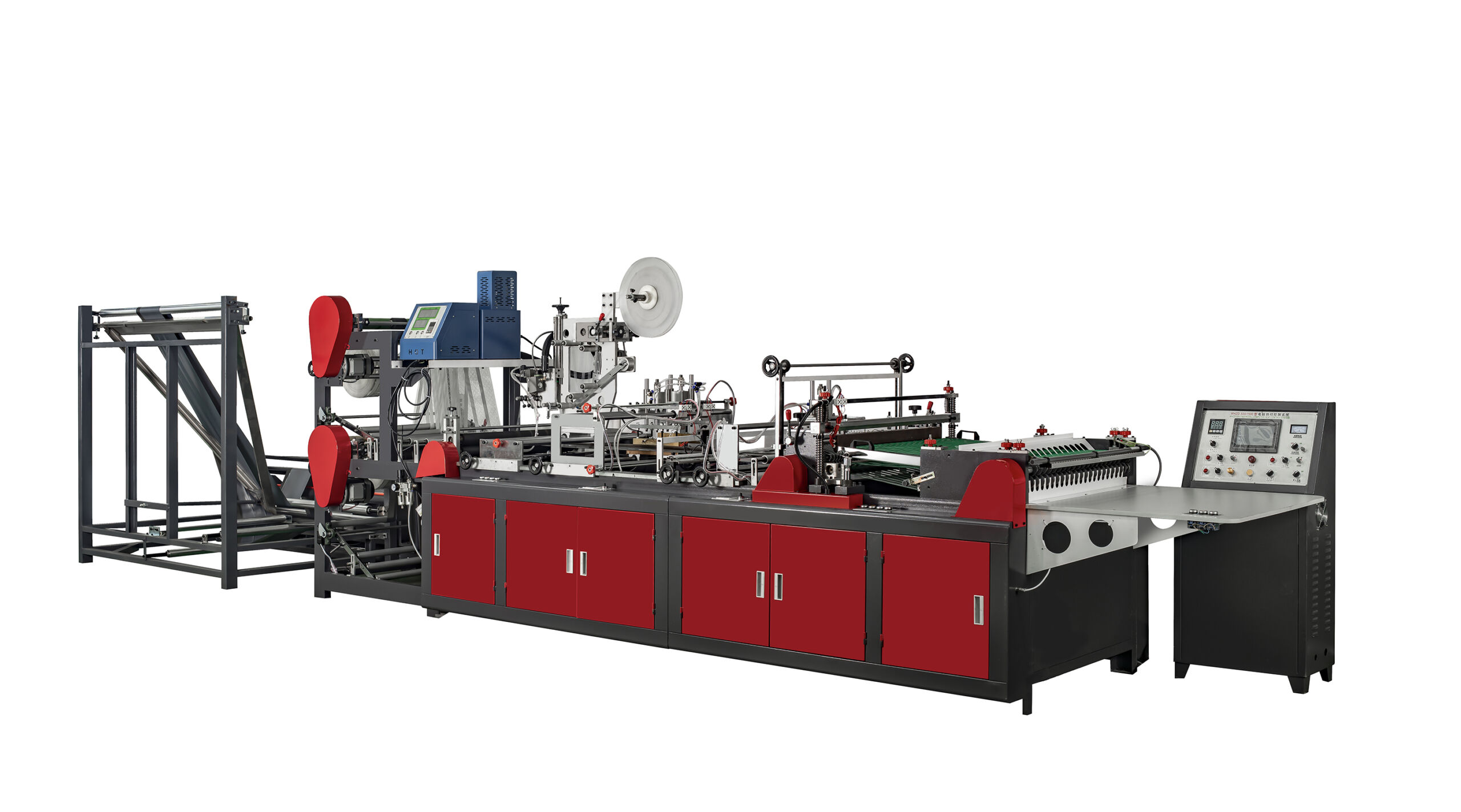

Fully Plastic Mail Bag Making Machine With Pocket Bag
Brief Indruction:
This machine is the high quantity DHL bag making machine,fully automatic design,easy operation.Main Features
1)Newly design DHL bag with longitudinal seal knife structure.

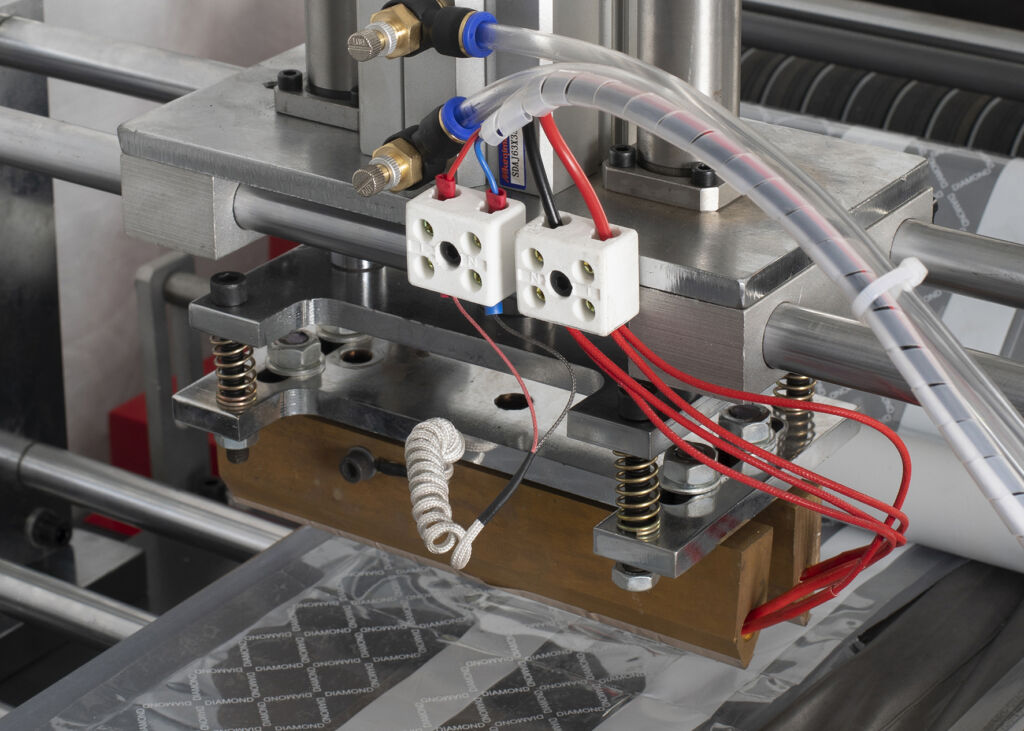

2)Newly design side sealing water circulate cooling device.
3)Top continuous sealing device.
Optional
1.Bottom seal and double seal knife.
2.OPP flower knife.
3.Hot sealing device(for producing DHL bag).
4.Perforation line device.

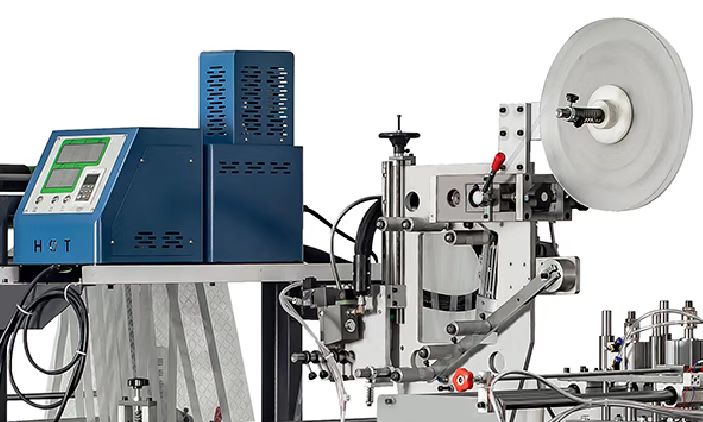

5.Adhesive tape device
二.Main Technical Parameter:
| Model | KD-900mm | Sealing knife | Special knife |
| Max. Cutting width | 850mm | Static controller | 16kv |
| Max. Cutting length | 750mm | static bar | 920mm |
| Production Speed | 30－220pcs／min | ||
| Film thickness | 0.01mm-0.10mm | Glue Sprayer | Bolun |
| Dimension（L×W×H） | 7200×2000×1900mm | Computer | HHGK |
| Main motor | Shanghai brand 1.1kw | Edge correction | Material feeding Edge correction |
| Length-fixed motor | Double servo motor | Material feeding | Pneumatic loading |
| Inverter | Dovel 1.5kw | Gluing | With auto-cutting glue function |
| Front&back feeding motor | Frequency motor | Solid relay | Taiwan Yangming |
| Valve | AirTac | Temperature controller | Yatai |
| Photosensitive | Panasonic | with pocket bag functionn | |
