Characteristic

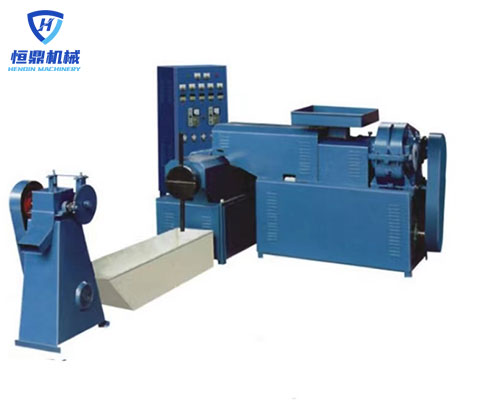

This machine is suitable for regeneration and granulation of waste plastics,as HDPE,LDPE,and PP,etc.It is equipped with quickmotor-operated filter-screen-replacing unit and automatic temperature control.The granulating-crusher uses adjustable speed motor,pelleting with an extruding machine at the same discharging speed synchronistically.The unit is easy to operate,with a high output,steady performance, and favorable economic benefit.
Main Technical Variables
| Model | SJ-B120*110 |
| Type Diameter of Screw Stem | Φ120mm&110mm with 45# medium carbon steel |
| Main extruder | |
| Screw&barrel | 120mm |
| Major Diameter Ratio of Screw Stem | L/D 11:1 |
| Main motor | 400 gear reduction box |
| Main Motor Power | 18.5kw with inverter control |
| Type Diameter of Screw Stem | Φ120mm with 45# medium carbon steel |
| Heating zone | 3zoncs on screw&barrel with ceramic heating and 2zone on die head with stainless steel heating |
| With normal screen changer with 200*200*2 | |
| With exhausting device | |
| Vice extruder | |
| Screw&barrel | 110mm |
| Major Diameter Ratio of Screw Stem | L/D 6:1 |
| Main motor | 350 gear reduction box |
| Main Motor Power | 7.5kw with inverter control |
| Type Diameter of Screw Stem | Φ110mm with 45# medium carbon steel |
| Heating zone | 2zoncs on screw&barrel with stainless steel heating and 1zone on die head with stainless steel heating |
| With normal screen changer with 200*200*2 | |
| Power of cutter | 1.5kw cutter |
| Output | 80kg/h-110kg/h |
| Water cooling baths | 1800*330*330mm |
| Weight of overall(kg) | 3000kg |
