General Description

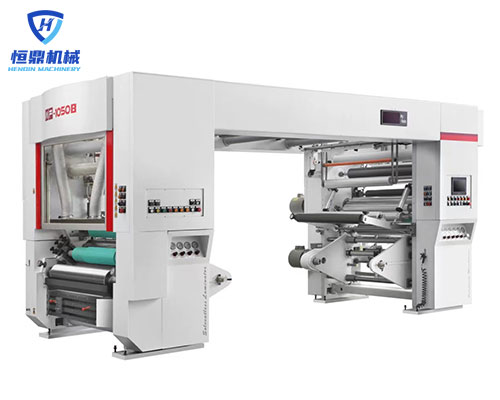

This machine suitable for the double layers or multi layers lamination of such roll film materials as BOPP, PET, Nylon, CPP, CPE, aluminum foil. The film laminated by this machine can be used for package materials with high requirements on strength, fresh-keep and cooking bag.
Main Technical data
| Model |
HDLM-E1050/1250/1350 (3 Vector Motor) |
| Effective Laminating Width |
1000mm/1200/1300 |
| Max. Width of Base Material |
1050mm/1250/1350 |
| Max.Lamination Speeds |
450-500m/min |
| Max. Diameter of primary unwinding |
Ф800mm |
| Max. Diameter of secondary unwinding |
Ф800mm |
| Max. Diameter of rewinding |
Ф1000mm |
| Inside Diameter of Roll Core of Base Material |
Ф76mm |
| Coating roller diameter |
Ф200mm |
| Amount of Coating Glue |
1.0~3g/㎡ |
| Coating Glue Type |
Five Rollers Coating System |
| Layer Quantity of Laminating |
Two Layer (for one pass) |
| Control Range of Tension |
3~30 kg (Preset) |
| Precise of Tension Control |
±0.5KG |
| Total power |
65Kw |
| Weight of Machine |
8000Kg |
| Overall Dimension |
L5700×W2600×H2300mm |
