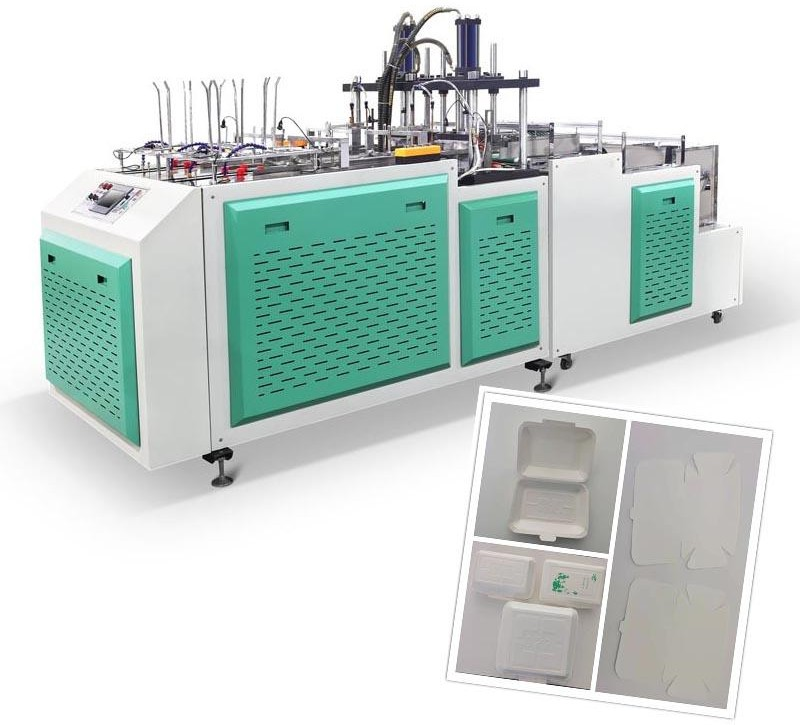

Double Line Model Paper Take-Away Box Forming Machine
Brief introduction:
HD-600 intelligent medium speed paper box machine is designed by ourselves according to the market needs, it has the functions of automatic paper feeding, paper forming, temperature controlling,paper box counting and collecting. The machine can be directly installed with production line, and it is the idea equipment to produce all kinds of paper box with different specifications.
HD-600 compared with traditional machine, it recombines the pneumatic system with mechanical system. The machine has advantages of higher speed, more stable running, safer operating and more convenient maintenance compared with the old machine,
HD-600 adopts the fast mechanical system, the maximum pressure can reach 3T, it has the advantage of more stable running and higher speed than the normal machine, and it is widely used in producing different size of box by changing mold.
Main technical parameter:
| 主要技术参数 | Main Technical Parameters | ||
|
纸盒规格 |
最大直径
450X380X40MM |
Paper Box Size |
Max Dia 450X380X40MM |
| 纸张克重 | 180-450 克/平方米 | Paper Grams | 180-450g/m2 |
|
纸质材料 |
单淋膜和双淋膜等其它
纸 |
Paper Materials |
Single or double coated paper or other
papers |
|
生产速度 |
单工位 20-40 只/分钟
双工位 40-80 只/分钟 |
Capacity |
Single Station 20-40pcs/min
Double Stations 40-80pcs/min |
| 电源要求 | 380V 50HZ | Power Requirements | 380V 50HZ |
| 总功率 | 5KW | Total Power | 5KW |
| 机器重量 | 1300kg | Weight | 1300kg |
| 外形尺寸 | 3500×1300×2000mm | Specifications | 3500×1300×2000mm |
|
配套气源要求 |
工作压力 0.6Mpa, 工作
气量 1 立方米/分钟 |
Air Supply Requirement |
0.6Mpa, 1cube/min |
| 其他备注 | 可定制 | Other Notes | Customize |
| 气缸主要技术参数 | ML-63-200-3T-X | Oil Cylinder | ML-63-200-3T-X |
| 气缸行程 | 200mm | Cylinder Stroke | 200mm |
