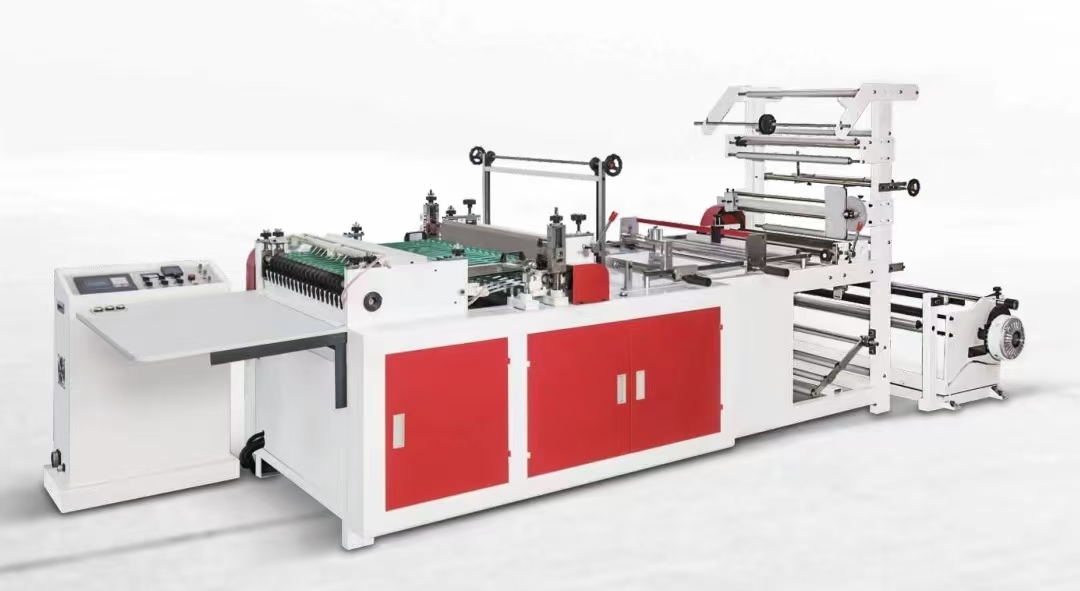

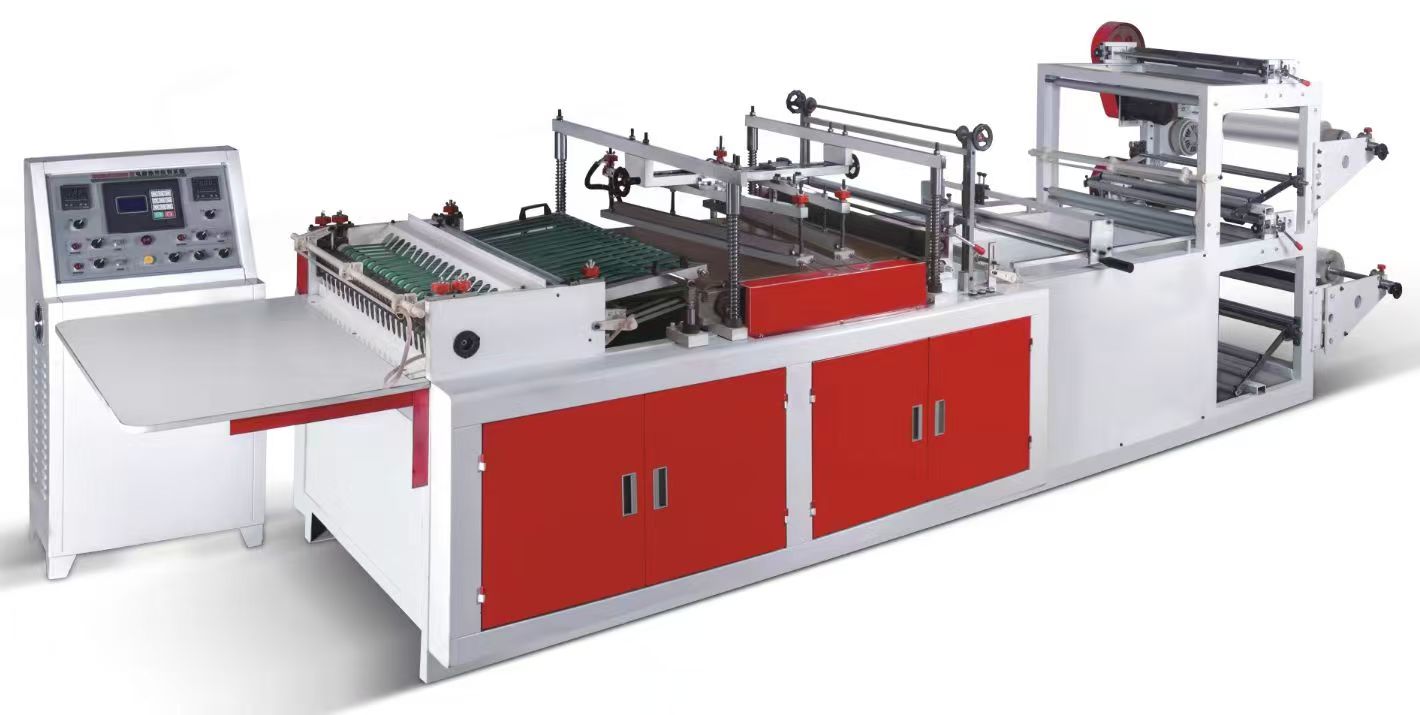

CPP/OPP/PE Side Sealing Bag Making Machine
Main Technical Parameter
| Model | HD-RQL600 | HD-RQL700 | HD-RQL800 | HD-RQL1000 |
| Max.sealing&cutting width | 550mm | 650mm | 750mm | 950mm |
| Sealing&cutting length | 700mm | 700mm | 700mm | 700mm |
| Sealing&cutting thickness | 0.01-0.05mm | 0.01-0.05mm | 0.01-0.05mm | 0.01-0.05mm |
| Bag-making Speed | 40-250pcs/min | 40-250pcs/min | 40-250pcs/min | 40-250pcs/min |
| Length Error | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm |
| Power Of Main Motor | 1.1kw 6grade | 1.1kw 6grade | 1.1kw 6grade | 1.1kw 6grade |
| Heating power | 1.5kw | 1.5kw | 1.5kw | 2kw |
| Total power | 3.5kw | 3.5kw | 3.5kw | 4kw |
| Machine weight | 800kg | 850kg | 900kg | 1000kg |
| Overall Dimension(LxWxH) | 3200x1200x1500mm | 3200x1300x1500mm | 3200x1400x1500mm | 3200x1600x1500mm |
