Product Application

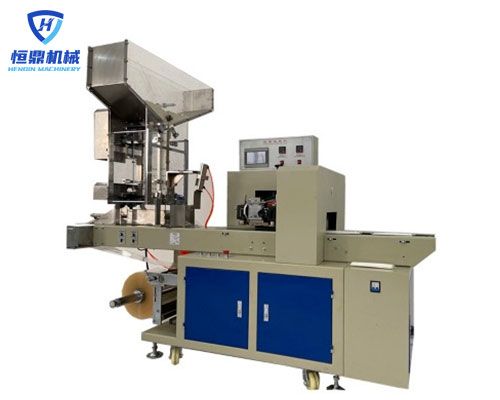

HD-450 Bulk straw packing machine is suitable for packing numbers of plastic drinking straws, paper straws, incense sticks, pencil in one bag , 20-350 pcs can be packed together according to various diameter.What's more, PE coated paper ( plastic filmed paper) could be also used as the packing materials.
Main Features
- It adopts PLC frequency converter with a touch-screen interface, measurement precision, electrical fault auto-detection, easy to operate and setting.
- Drinking straws countedby counting wheel, servo motor control, more accuracy.
- Packing speed and bag length use the double frequency converter control, infinitely variable speed, arbitrary adjustment range, can match the front-line working produce perfectly.
- It use high-quality double-frequency simple mechanical structure, easymaintenance, long life, less wear and tear.
- Its high-precision optical detection and tracking(film color tracking),two-way automatic compensation, accurate and reliable.
- Intelligent products feeding detection, optimizing the online function, effectively prevent the packaging material consumption, making the device a perfect run.
- Stainless steel conveyor table, and the main machine part of the machine are carbon-steel spray paintedcan also be operated according to the customers’ requirements with stainless steel.
Machine Specification
| Model |
HD-450 |
HD-450S |
HD-600 |
| Packaging material |
OPP,CPP,PE |
OPP,CPP,PE
Plastic film coated paper |
OPP,CPP,PE |
| Servo motor quantity |
3 |
4 |
3 |
| Packing Qty (for 6mm OD straw) |
20-250 |
20-250 |
20-350 |
|
Package Shaping Tray |
Total 2 sets:
20-100;
100-250; |
Total 2 sets:
20-100;
100-250; |
Total 3 sets:
20-100;
100-250;
200-350; |
| Cutting Knife Movement |
Up and down |
Rotation |
Up and down |
| Auto stop cutting function |
No |
Have |
No |
| Max. film width |
450mm |
450mm |
600mm |
| Bag length |
90-500mm |
90-500mm |
90-500mm |
| Packaging width |
50-180mm |
50-180mm |
50-240 |
| Packaging height |
10-115mm |
10-115mm |
10-115mm |
| Packing speed
(Depend on packing material) |
3-25 bags/min |
3-30 bags/min |
3-25 bags/min |
| Total Power |
3.5kw |
4 Kw |
4 Kw |
| Machine dimension(mm) |
3000*1500*1400 |
3000*1500*1400 |
3000*1500*1400 |
| Machine weight |
650KG |
665 KG |
700KG |
| For PE coated paper bag, the max quantity of one bag for 6mm OD drinking straws is 100 |
