Introduction

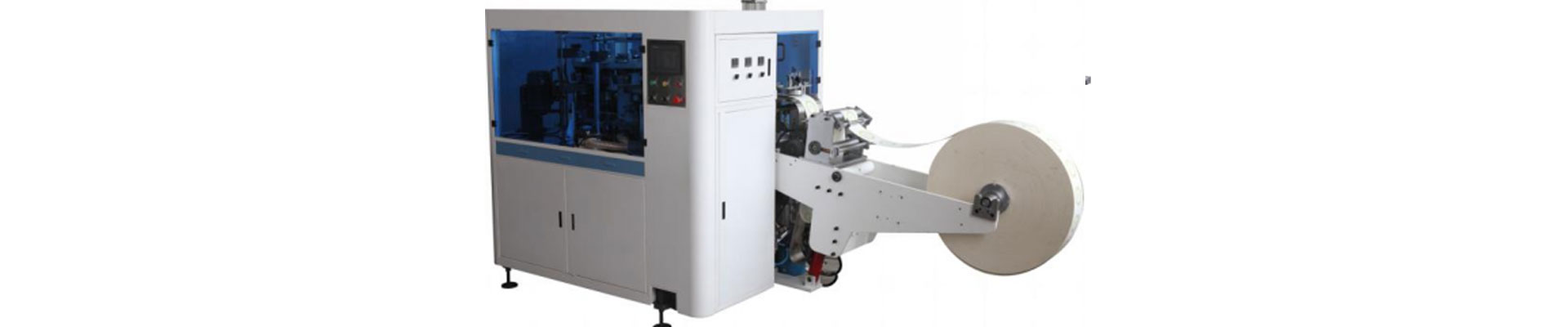

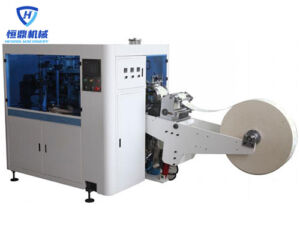

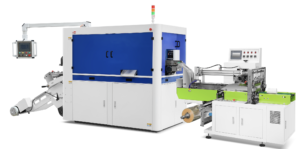

New model PL-145 high speed paper lid machine was developed on the basis of our company’s medium speed machine, with reference to the function of the paper cup forming machine and characteristics of the paper lid production efficiency. It is the best equipment for producing paper conatiner lid, instant juice cup lid, coca cola cup lid and other paper container lid.
Advantage
- It is very stable fro feeding the paper,less wastage,no need to cut the paper sheet put the machine.
- The worker for this machine reduces more,also it is more less cost for the paper material.
- Adopting self-lubrication system(auto oil circle system),automatic lubricate the move parts(bearing,axis,cam,chain,etc),keep the machine long life time(more durable) and reduce the manual maintenance,reduce the friction between the parts,So the machine can be maintained without manually fueling.
- PLC program control the whole line, intelligent control the movement,easy operate and maintenance,keep the machine running smoothly,less fault and less wastage
Technical Specification
| Model | Automatic paper roll paper lid machine |
| Speed | 70~100 pc/minute |
| Raw material | One-side or two side (polyethylene)film coated/laminated paper
(Like the PE coated paper; PLA paper; card boad paper with film) |
| Paper Lid Size | φ55-φ145mm |
| Working Power | 12kw |
| Total Power: | 17KW, |
| Power Source: | 3-phase, 380V, 50/60Hz, |
| Machine Size (L*W*H): | 6500*1510*1420 |
| Weight: | 4000KG; |
| Air Source: | Pressure: 4KG/cm2 ; (0.4MPa);
Out-put: 0.2~0.4 m3/minute; User Need To Buy Air Compressor |
| Available to make machines and molds on user order. | |

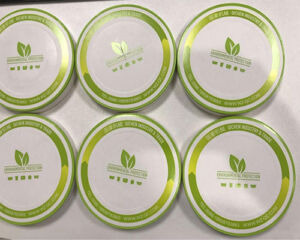

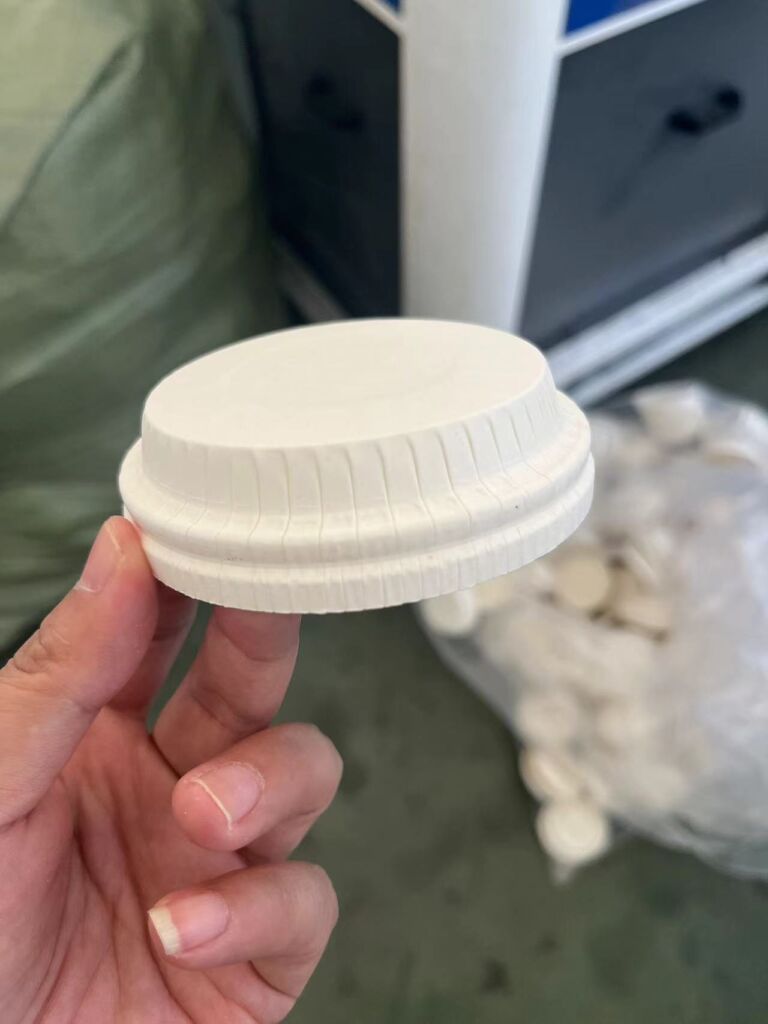

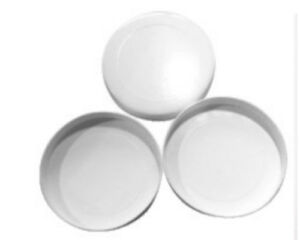

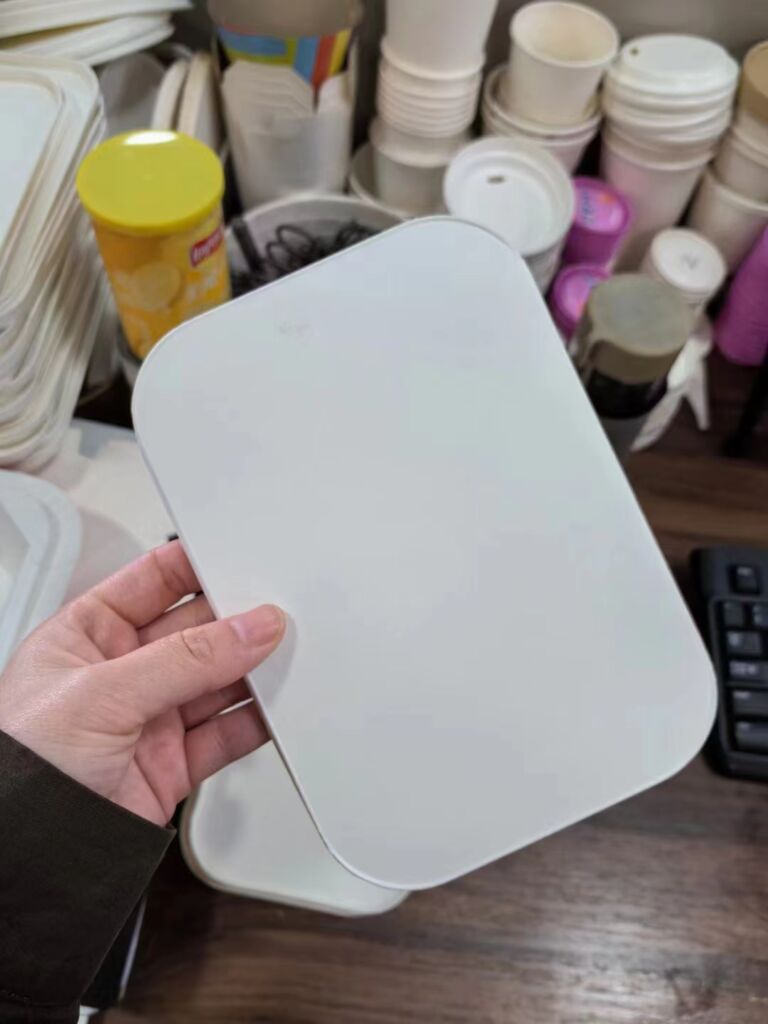

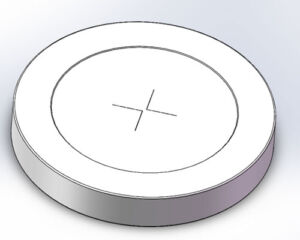

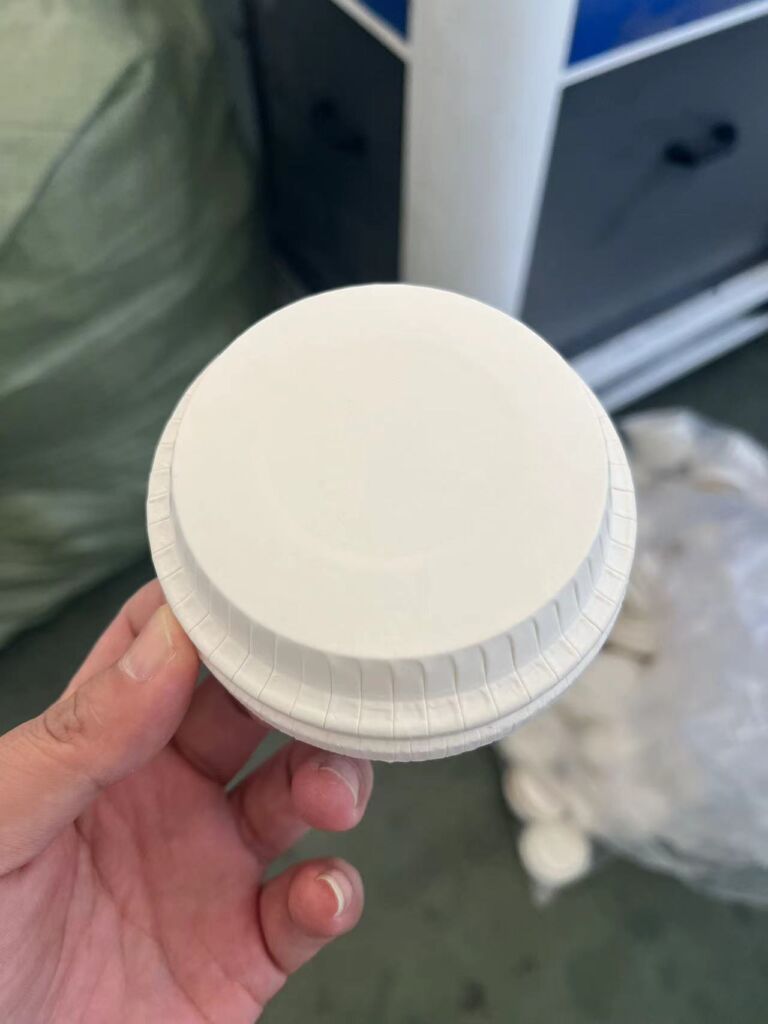

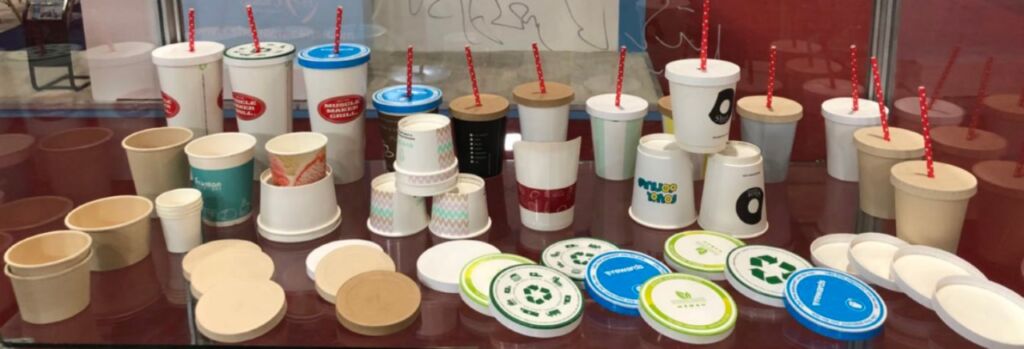

PL-145 Lid Sample and design
