Characteristic

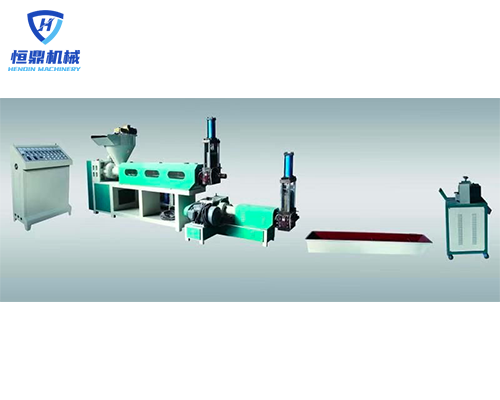

This machine is suitable for regeneration and granulation of waste plastics,as HDPE,LDPE,and PP,etc.It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control.The granulating-crusher uses adjustable speed motor,pelleting with an extruding machine at the same discharging speed synchronistically.The unit is easy to operate,with a high output,steady performance, and favorable economic benefit.
Main Technical Variables
| Model | SJ-A120 | |
| Type Diameter of Screw Stem | Φ120mm with SACM-645/38 CRMOALA material | |
| Main extruder | ||
| Screw&barrel | 120mm | |
| Major Diameter Ratio of Screw Stem | L/D 21:1 | |
| Main motor | 225 hardness gear reduction box | |
| Main Motor Power | 37kw with inverter control | |
| With hydraulic pressure non-stop screen changer with 220*220 | ||
| With exhausting device | ||
| Cutting way | With horizontal die head cutting water-cooling device,with double cutter rotating by inverter control | |
| With vertical type centrifugal dehydrator 5.5kw | ||
| With automatic conveyor with autobrake function (belt size:600*4500mm W*L) | ||
| With high speed grinding mixer | Diameter of mixing barrel 800mm | |
| High speed grinding mixer | 22kw | |
| Output | 130-180kg/hr | |
